Same model may have multiple batches, images only for reference.

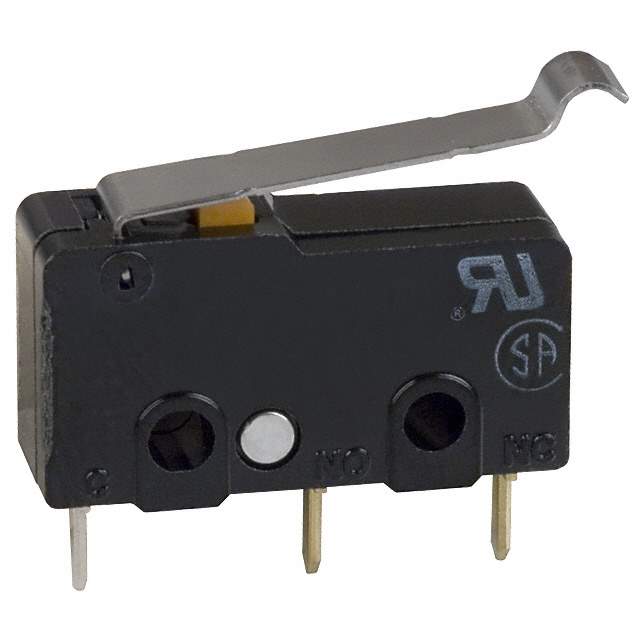

SS-5GL13-FD1 Real Image
Same model may have multiple batches, images only for reference.

SS-5GL13-FD1

Part No SS-5GL13-FD1
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Through Hole, Right Angle
Datasheet
SS-5GL13-FD1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Simulated Roller
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection IP40
Operating Force 16gf
Release Force 2.039gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names SS-5GL13-FD1 ,SS5GL13FD1BYOMI,SS-5GL13-FD1 BY OMI,SS-5GL13-FD1 BY OMI
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233558-SS-5GL13-FD1
Ultra Librarian 3D Model Ultra Librarian SS-5GL13-FD1 CAD Model

Description

The Omron SS-5GL13-FD1 is a limit switch designed for industrial automation and controls.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever, Simulated Roller
  • Electrical Life: 200,000 cycles
  • Standard Package: 500 switches
  • Ingress Protection: IP40
  • Voltage Rating for AC: 125V
  • Current Rating: 5A
  • Mechanical Life: 30,000,000 cycles
  • Release Force: 2.039gf
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.047" (1.2mm)
  • Operating Position: 0.420" (10.7mm)
  • Mounting Type: Through-Hole, Right Angle
  • Temperature Range: -25°C to 85°C
