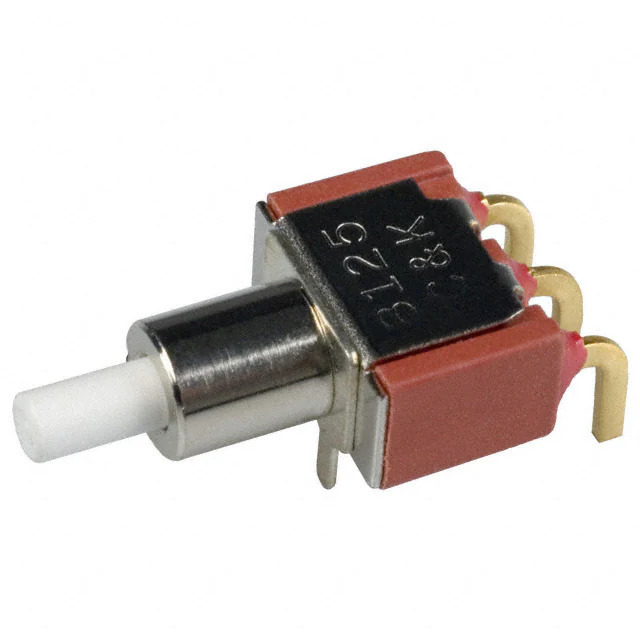

8125SD9RBE C&K Components
Same model may have multiple batches, images only for reference.

8125SD9RBE

Part No 8125SD9RBE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 20V
Datasheet
8125SD9RBE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series 8020
Package Tray
Product Status Active
Mounting Type Through Hole, Right Angle
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap White
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection -
Features Tactile Feedback
Panel Cutout Dimensions -
Temperature Range - Operating -30°C ~ 75°C
Mechanical Life -
Electrical Life 60,000 Cycles
Base Product Number 8125SD
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376048-8125SD9RBE
Ultra Librarian 3D Model Ultra Librarian 8125SD9RBE CAD Model

Description

The 8125SD9RBE is a pushbutton switch from C&K's 8020 series.

  • Mounting: Through-hole, right angle
  • Voltage Rating: 20V AC/DC
  • Circuit: SPDT
  • Switch Function: on-mom
  • Current Rating: 0.4VA
  • Feedback: Tactile
  • Actuator: Round plunger type in white color
  • Mechanical Life: 60,000 cycles
