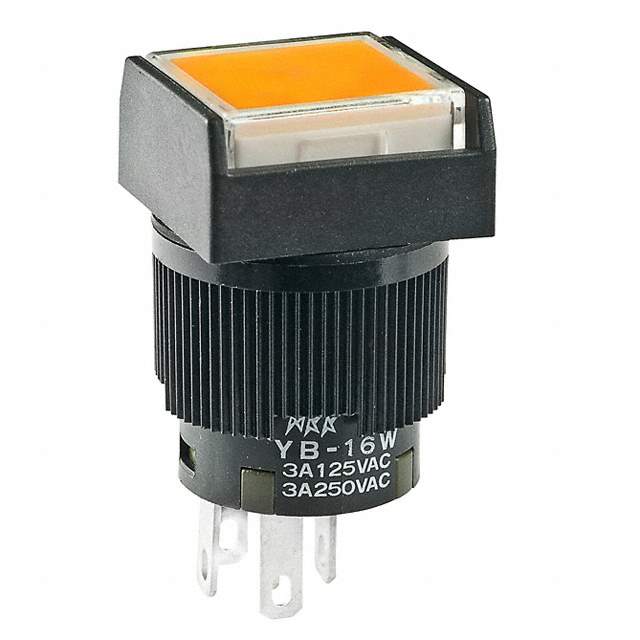

YB16WSKW01-5D-JD Real Image
Same model may have multiple batches, images only for reference.

YB16WSKW01-5D-JD

Part No YB16WSKW01-5D-JD
Manufacturer NKK Switches
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 3A 125V
Datasheet
YB16WSKW01-5D-JD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer NKK Switches
Packaging Bulk
Status Active
Type Standard, Illuminated
Circuit SPDT
Switch Function On-On
Current Rating 3A (AC/DC)
Voltage Rating - AC 125V
Voltage Rating - DC 30V
Actuator Type Square, Button
Color - Actuator/Cap Clear (Amber Filter/Diffuser)
Illumination Type, Color LED, Amber
Illumination Voltage (Nominal) 2 VDC
Mounting Panel Mount, Front
Termination Style Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection IP65 - Dust Tight, Water Resistant
Features Epoxy Sealed Terminals
Panel Cutout Dimensions Circular - 16.00mm Dia
Temperature Range - Operating -25°C to 50°C
Mechanical Life 200,000 Cycles
Electrical Life 100,000 Cycles
Win Source Part Number 1021400-YB16WSKW01-5D-JD
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Industrial, Power Management
Ultra Librarian 3D Model Ultra Librarian YB16WSKW01-5D-JD CAD Model

Description

The NKK Switches 1021400-YB16WSKW01-5D-JD is a standard illuminated switch with epoxy sealed terminals.

  • Current Rating: 3A
  • Ingress Protection: IP65, making it dust tight and water-resistant
  • Voltage Rating: 125V AC and 30V DC
  • Circuit: SPDT
  • Switch Function: on-on
  • Actuator Type: square button
  • Mechanical Life: 200,000 cycles
  • Illumination Voltage: 2VDC
  • Illumination Type: LED with an amber color
  • Mounting Type: panel-mounted
  • Panel Cutout Dimension: 16.00mm Dia
  • Commonly Used in: industrial and power management applications
