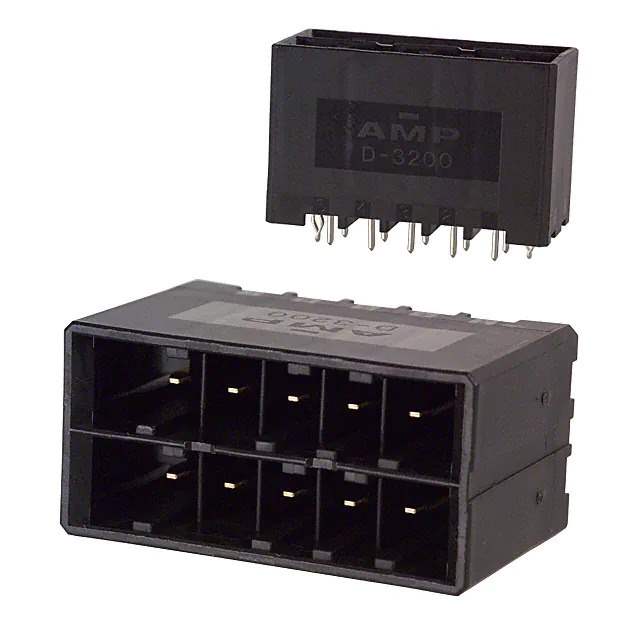

1-917657-2 Real Image
Same model may have multiple batches, images only for reference.

1-917657-2

Part No 1-917657-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 5.08MM / Connector Header Through Hole 10 position 0.200" (5.08mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Dynamic D-3200
Package Bulk
Product Status Active
Connector Type Header
Contact Type Tab
Pitch - Mating 0.200" (5.08mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.300" (7.62mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.850" (21.59mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 600V
Mated Stacking Heights 31.00mm ~ 32.50mm
Applications General Purpose, Industrial
Base Product Number 917657
Standard Package 14 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854232-1-917657-2
Ultra Librarian 3D Model Ultra Librarian 1-917657-2 CAD Model

Description

The Dynamic D-3200 series from TE Connectivity offers high-quality rectangular connectors for various applications. This particular connector, part number 854232-1-917657-2, is a male pin header with 10 positions and 2 rows.

  • Positions: 10
  • Rows: 2
  • Fastening Type: Detent Lock
  • Termination: Solder
  • Contact Material: Copper Alloy
  • Contact Plating: Gold
  • Voltage Rating: 600V
  • Application: General Purpose, Industrial
  • Insulation Material: Thermoplastic, Polyester, Glass-Filled
  • Insulation Color: Black
  • Mating Pitch: 0.200" (5.08mm)
  • Contact Finish Thickness (Mating): 15.0μin (0.38μm)
  • Mounting: Through-Hole
  • Temperature Range: -55°C to 105°C
