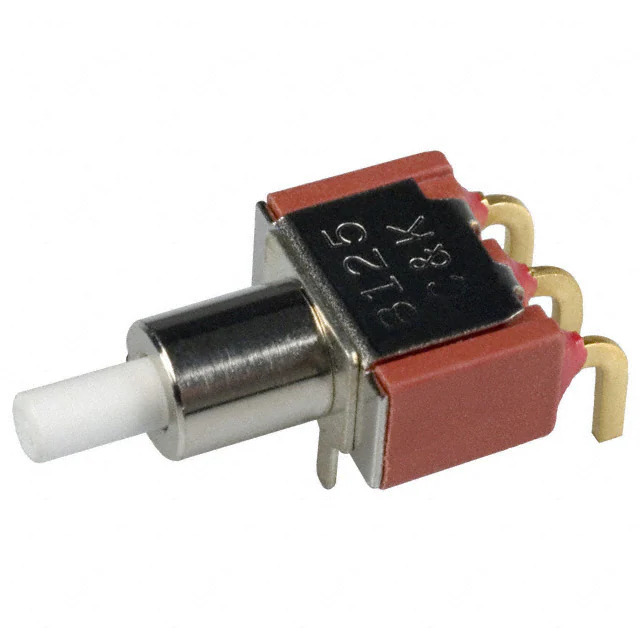

8121SY9ARE C&K Components
Same model may have multiple batches, images only for reference.

8121SY9ARE

Part No 8121SY9ARE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 1A 120V
Datasheet
8121SY9ARE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series 8020
Package Tray
Product Status Active
Mounting Type Through Hole, Right Angle
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 1A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap White
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection -
Features Tactile Feedback
Panel Cutout Dimensions -
Temperature Range - Operating -30°C ~ 75°C
Mechanical Life -
Electrical Life 60,000 Cycles
Base Product Number 8121SY
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376049-8121SY9ARE
Ultra Librarian 3D Model Ultra Librarian 8121SY9ARE CAD Model

Description

The 1376049-8121SY9ARE is a pushbutton switch from C&K's 8020 series.

  • Type: Standard
  • Current Rating: 1A (AC/DC)
  • Voltage Rating: 120V AC and 28V DC
  • Actuator Type: Round
  • Actuator/Cap Color: White
  • Feedback: Tactile
  • Circuit: SPDT
  • Switch Function: on-mom
  • Mounting: Through hole, right angle
  • Temperature Range: -30°C to 75°C
  • REACH: Affected
