Same model may have multiple batches, images only for reference.

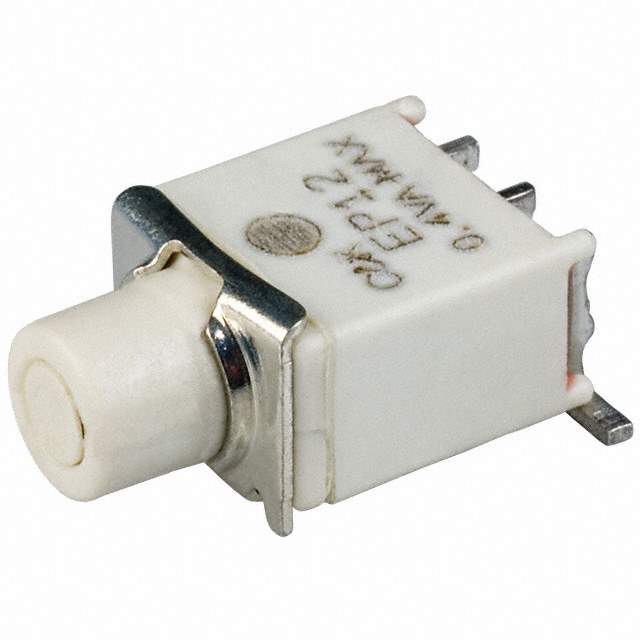

EP12FPD1SAKE Real Image
Same model may have multiple batches, images only for reference.

EP12FPD1SAKE

Part No EP12FPD1SAKE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 20V / Pushbutton Switch SPDT Standard Surface Mount, Right Angle
Datasheet
EP12FPD1SAKE Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr C&K
Series EP
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Mounting Type Surface Mount, Right Angle
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Round, Plunger, Flush
Actuator Marking No Marking
Color - Actuator/Cap White
Termination Style Gull Wing
Ingress Protection IP57 - Dust Protected, Waterproof
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Electrical Life 30,000 Cycles
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names *EP12FPD1SAKE(T&R),EP12FPD1SAKETR-ND,*EP12FPD1SAKE,CKN9022CT,EP12FPD1SAKE(T&R),EP12FPD1SAKECT,CKN9022TR,EP12FPD1SAKETR,EP12FPD1SAKECT-ND
Standard Package 600
Win Source Part Number 999801-EP12FPD1SAKE
Ultra Librarian 3D Model Ultra Librarian EP12FPD1SAKE CAD Model

Description

The EP series pushbutton switch from C&K Components is a standard switch that is surface mounted with a gull wing termination style.

  • Mounting: Surface Mount
  • Termination Style: Gull Wing
  • Temperature Range: -30°C to 85°C
  • Ingress Protection: IP57
  • Voltage Rating (AC/DC): 20 V
  • Standard Package: 600
  • Series: EP
  • Status: Obsolete
