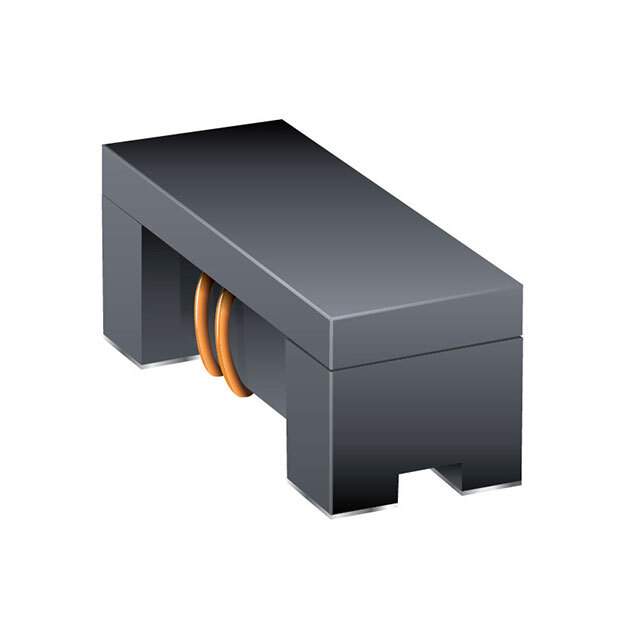

SRF2012-261Y Real Image
Same model may have multiple batches, images only for reference.

SRF2012-261Y

Part No SRF2012-261Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF2012
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Number of Lines 2
Impedance @ Frequency 260 Ohms @ 100 MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 400mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Dimension 0.081" L x 0.049" W (2.05mm x 1.25mm)
Height (Max) 0.057" (1.45mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number SRF2012
Other Names -SRF2012-261Y,SRF2012-261YTR,-SRF2012-261Y,-SRF2012-261YCT,SRF2012-261YCT,-SRF2012-261YTR,SRF2012261Y,SRF2012-261Y
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1277148-SRF2012-261Y
Ultra Librarian 3D Model Ultra Librarian SRF2012-261Y CAD Model

Description

The Bourns Inc. SRF2012-261Y is a common mode choke filter.

  • Voltage Rating - DC: 50V
  • Current Rating (Max): 300mA
  • Package / Case: Horizontal, 4 PC pad
  • Impedance: 260 Ohms @ 100 MHz
  • DC Resistance (DCR) (Max): 400mOhm
  • Ideal For: Use in applications such as power supplies, motor drives, and lighting ballasts
  • Height (Max): 0.057" (1.45mm)
  • Packaging: Tape & reel (TR), cut tape (CT) packaging
  • Status: The Bourns Inc. SRF2012-261Y is obsolete.
