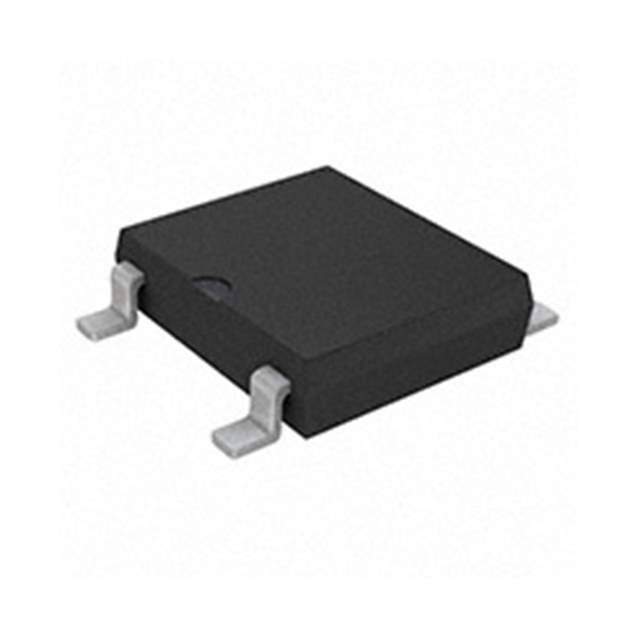

ABS10U Real Image1 ABS10U Real Image2
Same model may have multiple batches, images only for reference.
ABS10U Real Image1 ABS10U Real Image2
ABS10U Real Image1 ABS10U Real Image2
Same model may have multiple batches, images only for reference.

ABS10U

Part No ABS10U
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 1A ABS / Bridge Rectifier Single Phase Standard 1 kV Surface Mount ABS
Datasheet
ABS10U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes>Bridge Rectifiers
Mfr SMC Diode Solutions
Series -
Package Tape & Reel
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 1 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package ABS
Base Product Number ABS10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 5,000 pcs
Win Source Part Number 1381300-ABS10U
Ultra Librarian 3D Model Ultra Librarian ABS10U CAD Model

Description

The 1381300-ABS10U is a single-phase bridge rectifier designed for standard applications in the field of consumer electronics.

  • Manufacturer: SMC Diode Solutions
  • Forward Voltage: 1.1V @ 1A
  • Maximum Peak Reverse Voltage: 1kV
  • Reverse Leakage Current: 5µA @ 1000V
  • Package / Case: ABS
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C to 150°C
  • Standard Package: 5,000 pcs
