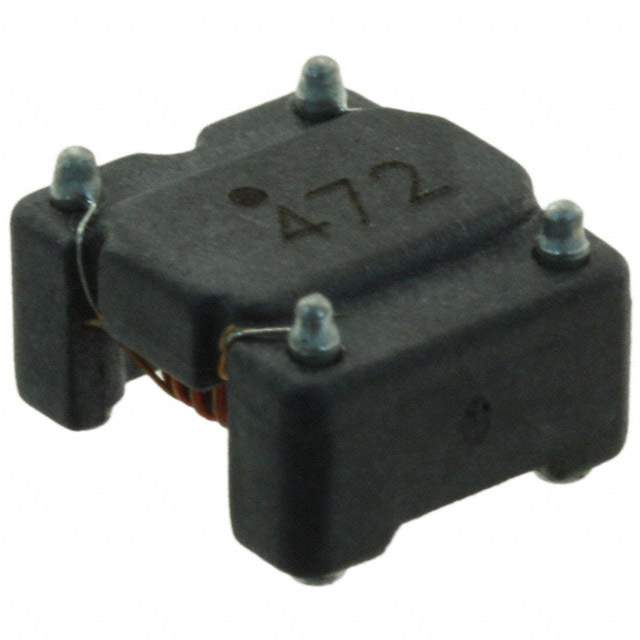

SRF1006-502Y Real Image
Same model may have multiple batches, images only for reference.

SRF1006-502Y

Part No SRF1006-502Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Datasheet
SRF1006-502Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF1006
Package Tape & Reel (TR)
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 5 kOhms @ 500 kHz
Inductance @ Frequency 5 mH @ 100 kHz
Current Rating (Max) 250mA
DC Resistance (DCR) (Max) 620mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 105°C
Mounting SMD (SMT)
Dimension 0.394" L x 0.343" W (10.00mm x 8.70mm)
Height (Max) 0.256" (6.50mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number SRF1006
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1277152-SRF1006-502Y
Ultra Librarian 3D Model Ultra Librarian SRF1006-502Y CAD Model

Description

The Bourns Inc. SRF1006-502Y is a common mode choke filter.

  • Current Rating (Max): 250mA
  • Voltage Rating: 50V DC
  • Impedance @ Frequency: 5 kOhms @ 500 kHz
  • Inductance @ Frequency: 5 mH @ 100 kHz
  • Package/Case: Horizontal, 4 PC Pad
  • Height: 0.256”
  • Application: Signal line filter applications
