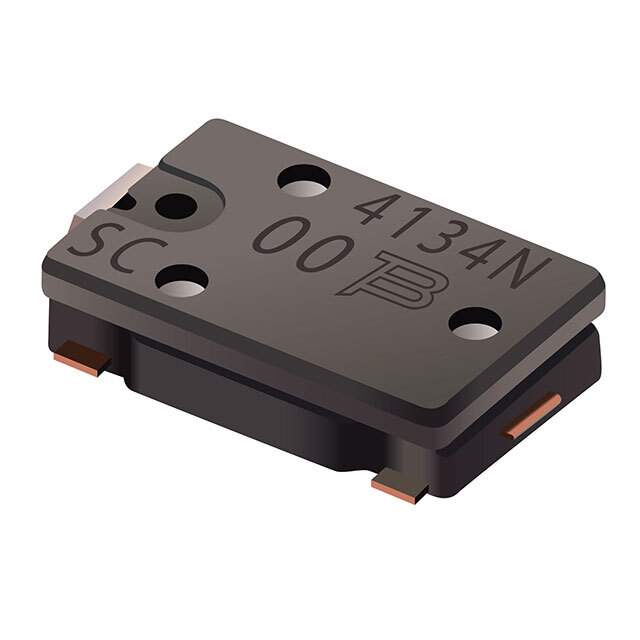

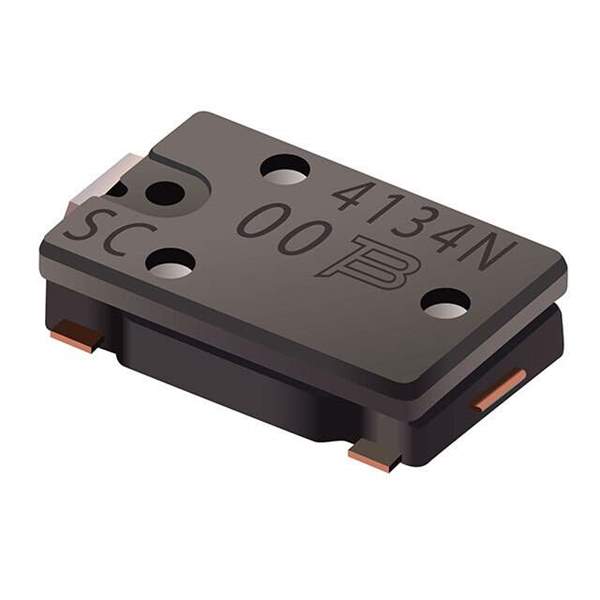

SC77AAB Real Image
Same model may have multiple batches, images only for reference.

SC77AAB

Part No SC77AAB
Manufacturer Bourns Inc.
Catalog Thermal Cutoffs, Cutouts (TCO)
Datasheet
SC77AAB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Thermal Cutoffs (Thermal Fuses and Breakers)
Mfr Bourns Inc.
Series SC
Package Tape & Reel
Type Breaker
Holding Temperature 25°C (77°F)
Rated Functioning Temperature 77°C (171°F)
Reset Temperature 40°C (104°F)
Voltage Rating - DC 28
Current Rating (Amps) 25 A
Approval Agency cUL, TUV, UL
Package / Case Nonstandard SMD
Base Product Number SC77A
Other Names SC77AABCT,SC77AABTR,SC77AABDKR
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 1301573-SC77AAB
Ultra Librarian 3D Model Ultra Librarian SC77AAB CAD Model

Description

The SC77AAB is a thermal cutoff designed to protect against overheating in electronic circuits.

  • Device Type: Breaker
  • Reset Temperature: 40°C (104°F)
  • Holding Temperature: 25°C (77°F)
  • Rated Functioning Temperature: 77°C (171°F)
  • Maximum Temperature Limit: None
  • Voltage Rating: 28VDC
  • Current Rating: 25A
  • Package: Non-standard SMD
  • Packaging: Tape and Reel
  • Standard Package: 5,000
  • Approvals: cUL, TUV, and UL
