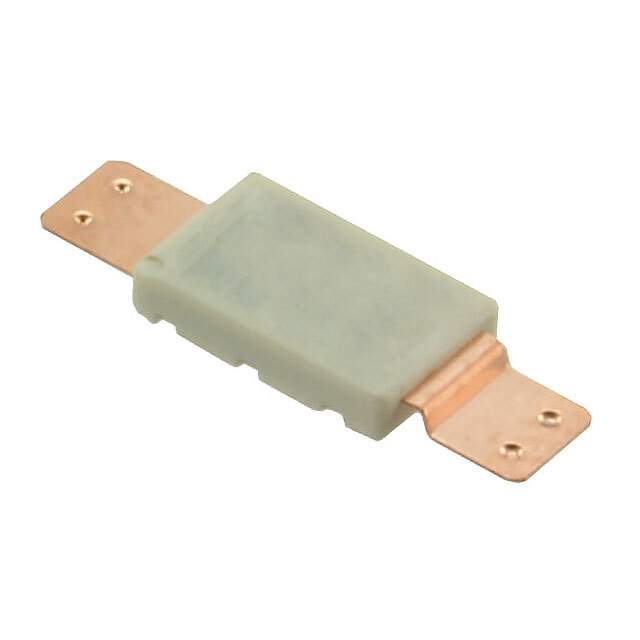

The RF4018-000 is a TVS (Transient Voltage Suppression) diode manufactured by Littelfuse Inc. It is designed to protect sensitive electronic equipment from voltage transients induced by lightning, inductive load switching, and electrostatic discharge (ESD).

Applications

• Telecommunication Equipment: Protection of central office equipment, PBX systems, and line cards.
• Industrial Control Systems: Surge protection for PLCs, I/O modules, and sensors.
• Consumer Electronics: Protecting sensitive components in televisions, set-top boxes, and gaming consoles.
• Medical Devices: Ensuring reliable operation of medical equipment by suppressing voltage transients.
• Networking Equipment: Protecting Ethernet interfaces, routers, and switches from surge events.

Features

• Unidirectional Protection: Provides surge protection in one direction.
• Low Clamping Voltage: Minimizes the voltage seen by protected components during a surge event.
• Fast Response Time: Quickly clamps transient voltages to protect sensitive circuitry.
• High Surge Capability: Can withstand high surge currents without degradation.
• RoHS Compliant: Meets environmental regulations for hazardous substances.

Benefits

• Enhanced System Reliability: Protects sensitive electronic equipment from damage due to voltage transients.
• Reduced Downtime: Prevents equipment failures caused by surge events, minimizing downtime and maintenance costs.
• Improved Product Safety: Ensures safe operation of electronic devices by preventing overvoltage conditions.
• Extended Product Lifespan: Protects components from long-term degradation caused by repeated surge events.
• Cost-Effective Protection: Provides a simple and inexpensive solution for surge protection.

Additional Details

The RF4018-000 has a peak pulse power dissipation rating that defines its surge handling capability. It is crucial to select a TVS diode with a sufficient surge capability to protect the circuit in its intended application. The clamping voltage is another important parameter, indicating the maximum voltage that the protected circuit will be exposed to during a surge. The RF4018-000 is available in a surface-mount package, allowing for easy integration into circuit boards. Detailed specifications can be found in the manufacturer's datasheet, including peak pulse current, reverse standoff voltage, and operating temperature range.
