Same model may have multiple batches, images only for reference.

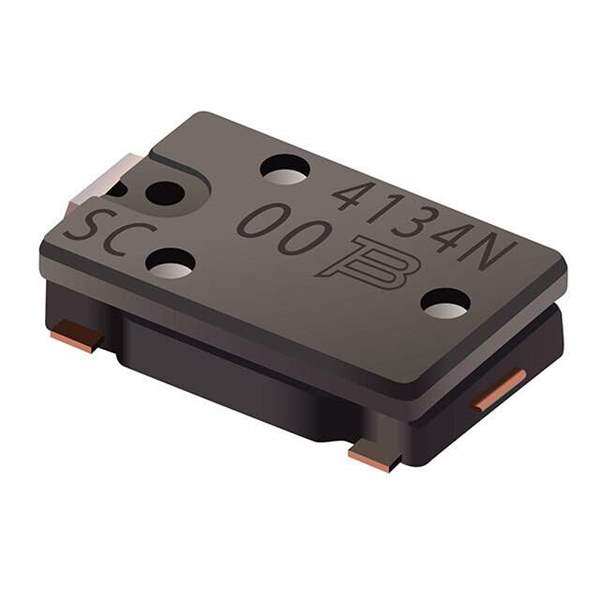

SC85AAB Real Image
Same model may have multiple batches, images only for reference.

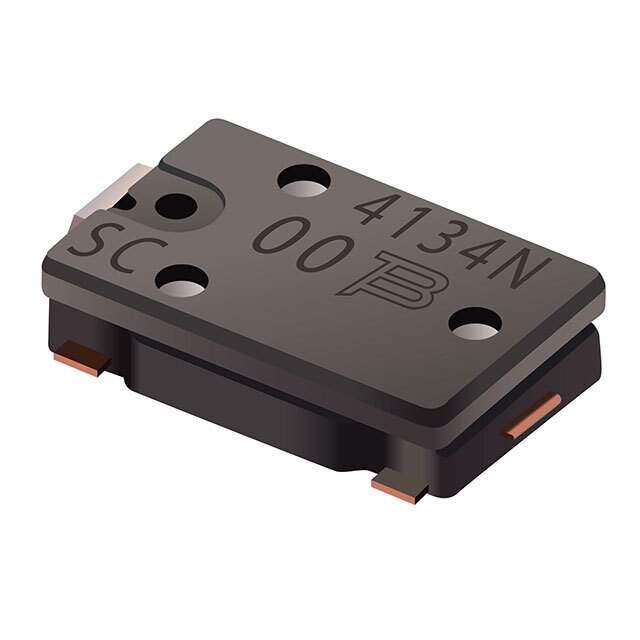

SC85AAB

Part No SC85AAB
Manufacturer Bourns Inc.
Catalog Thermal Cutoffs, Cutouts (TCO)
Datasheet
SC85AAB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Thermal Cutoffs (Thermal Fuses and Breakers)
Mfr Bourns Inc.
Series SC
Package Tape & Reel
Type Breaker
Holding Temperature 25°C (77°F)
Rated Functioning Temperature 85°C (185°F)
Reset Temperature 40°C (104°F)
Voltage Rating - DC 28
Current Rating (Amps) 25 A
Approval Agency cUL, TUV, UL
Package / Case Nonstandard SMD
Base Product Number SC85A
Other Names SC85AABDKR,SC85AABCT,SC85AABTR
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 1301569-SC85AAB
Ultra Librarian 3D Model Ultra Librarian SC85AAB CAD Model

Description

The SC85AAB is a thermal cutoff (thermal fuse and breaker) circuit protection component that is designed to interrupt the circuit when the temperature exceeds the rated functioning temperature of 85°C (185°F).

  • Maximum Voltage Rating: 28V DC
  • Current Rating: 25A
  • Rated Functioning Temperature: 85°C (185°F)
  • Series: SC
  • Package: Nonstandard SMD
  • Packaging: Tape and Reel
  • Standard Package: 5,000 units
  • Reset Temperature: 40°C (104°F)
  • Holding Temperature: 25°C (77°F)
  • Approvals: cUL, TUV, UL
  • ECCN: EAR99
  • Ideal for: Applications that require thermal protection against over-temperature conditions
