Same model may have multiple batches, images only for reference.

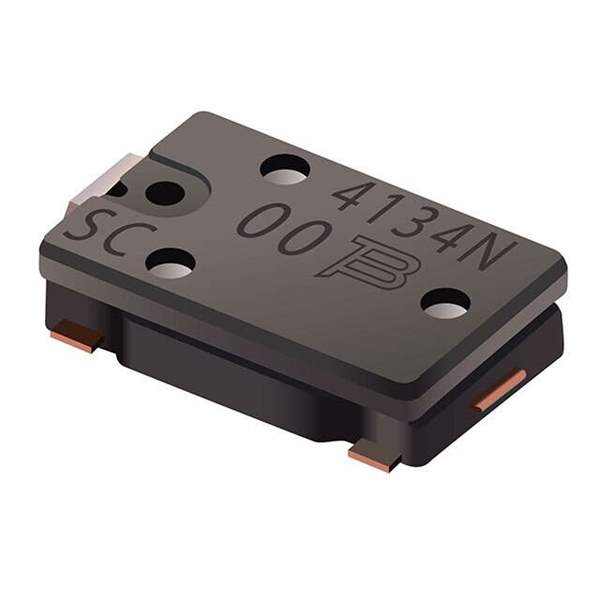

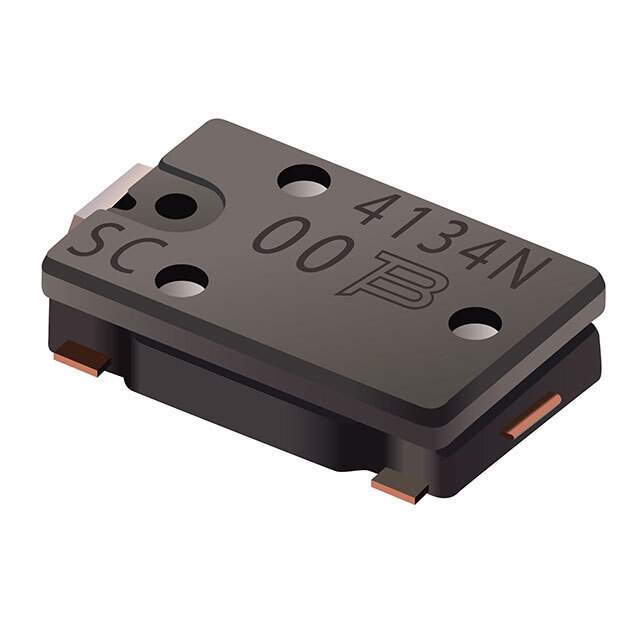

SC85AAA Real Image
Same model may have multiple batches, images only for reference.

SC85AAA

Part No SC85AAA
Manufacturer Bourns Inc.
Catalog Thermal Cutoffs, Cutouts (TCO)
Datasheet
SC85AAA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Thermal Cutoffs (Thermal Fuses and Breakers)
Mfr Bourns Inc.
Series SC
Package Tape & Reel
Type Breaker
Holding Temperature 25°C (77°F)
Rated Functioning Temperature 85°C (185°F)
Reset Temperature 40°C (104°F)
Voltage Rating - DC 28
Current Rating (Amps) 25 A
Approval Agency cUL, TUV, UL
Package / Case Nonstandard SMD
Base Product Number SC85A
Other Names SC85AAADKR,SC85AAACT,SC85AAATR
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 1301568-SC85AAA
Ultra Librarian 3D Model Ultra Librarian SC85AAA CAD Model

Description

The Bourns Inc. SC85AAA is a type of thermal cutoff (thermal fuse and breaker) electronic component.

  • Manufacturer: Bourns Inc.
  • Win Source Part Number: 1301568-SC85AAA
  • Type: Breaker
  • Voltage Rating: 28 DC
  • Rated Functioning Temperature: 85°C (185°F)
  • Reset Temperature: 40°C (104°F)
  • Holding Temperature: 25°C (77°F)
  • Package: Tape & reel
  • Package/Case: Nonstandard SMD
  • Current Rating: 25 A
  • REACH: REACH unaffected
  • Approvals: cUL, TUV, and UL
