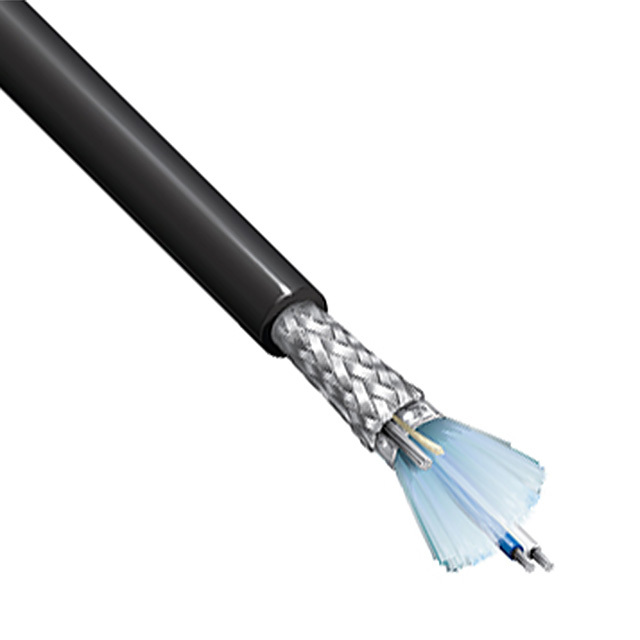

3105A 0101000 Belden Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

3105A 0101000

Part No 3105A 0101000
Manufacturer Belden Inc.
Catalog Multiple Conductor Cables
Description 2 (1 Pair Twisted) Conductor Multi-Conductor Cable Black 22 AWG Foil, Braid 1000.0' (304.8m)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Belden Inc.
Packaging Spool
Cable Type Multi-Conductor
Number of Conductors 2 (1 Pair Twisted)
Wire Gauge 22 AWG
Conductor Strand 7/30
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.281" (7.14mm)
Shield Type Foil, Braid
Length 1000.0' (304.8m)
Jacket Color Black
Features Drain Wire, Oil Resistant, UV Resistant
Voltage 300 V
Temperature Range - Operating -20°C ~ 60°C
Conductor Insulation Foam High Density Polyethylene (FHDPE)
Shield Material Aluminum; Copper, Tinned
Shield Coverage 100%, 65%
Base Product Number 3105A
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Win Source Part Number 1479557-3105A 0101000
Ultra Librarian 3D Model Ultra Librarian 3105A 0101000 CAD Model
