Same model may have multiple batches, images only for reference.

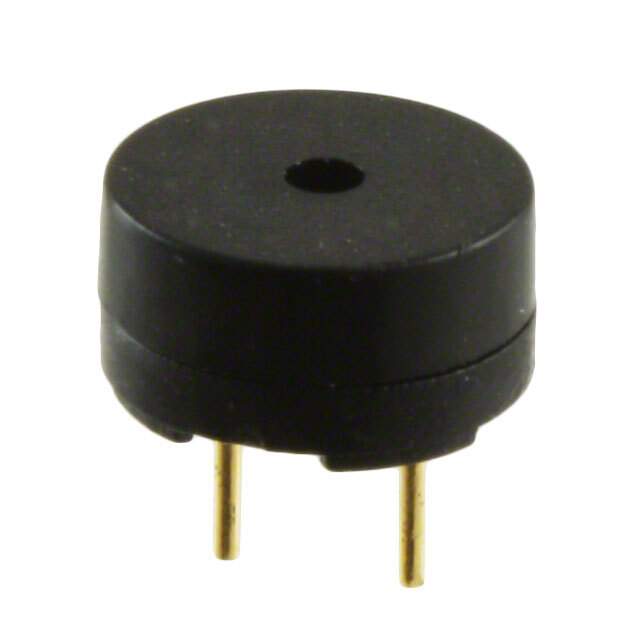

CST-951AP Real Image
Same model may have multiple batches, images only for reference.

CST-951AP

Part No CST-951AP
Manufacturer CUI Inc.
Catalog Alarms, Buzzers, and Sirens
Description BUZZER MAGNETIC 5V 9MM TH / Buzzers Transducer, Externally Driven Magnetic 5 V 80mA 2.73kHz 85dB @ 5V, 10cm Through Hole PC Pins
Datasheet
CST-951AP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Alarms, Buzzers, and Sirens
Manufacturer CUI Devices
Packaging Tray
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage - Rated 5 V
Voltage Range 4 ~ 6V
Frequency 2.73kHz
Technology Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 85dB @ 5V, 10cm
Current - Supply 80mA
Port Location Top
Temperature Range - Operating -20°C ~ 70°C
Mounting Through Hole
Termination PC Pins
Size / Dimension 0.354" Dia (9.00mm)
Height - Seated (Max) 0.197" (5.00mm)
Base Product Number CST-951
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.80.9041
Other Part Number 037-4347R,CST951AP,102-1459
Standard Package 700
Win Source Part Number 1323844-CST-951AP
Ultra Librarian 3D Model Ultra Librarian CST-951AP CAD Model

Description

The CST-951AP from CUI Devices is an audio product that falls under the category of alarms, buzzers, and sirens.

  • Frequency: 2.73kHz
  • Input Type: zero-peak signal
  • Voltage Range: 4 ~ 6V
  • Sound Pressure Level (SPL): 85dB @ 5V, 10cm
  • Mounting Type: through-hole
  • Voltage Rating: 5V
  • Package Size: 0.354" Dia (9.00mm)
  • Height: seated at a maximum of 0.197" (5.00mm)
  • Package: tray
  • Standard Package: 700
  • Operating Temperature Range: -20°C to 70°C
  • ROHS3 Compliant: true
  • REACH: unaffected
