Product Overview: MAX2769CETI+ by Analog Devices Inc.

The MAX2769CETI+ is a state-of-the-art Global Navigation Satellite System (GNSS) single-chip receiver from Analog Devices Inc., designed to provide high performance and versatility across a wide range of navigation applications. This advanced receiver is capable of processing signals from multiple satellite constellations, including GPS, GLONASS, Galileo, and COMPASS, making it an ideal choice for global positioning and timing solutions.

Key Features

• Multi-Constellation Support: The device is equipped to handle various satellite signals, ensuring compatibility with global GNSS standards.
• High Integration: The MAX2769CETI+ integrates a complete receiver chain, including a dual-input LNA, RF to baseband downconversion mixers, variable gain amplifiers, filters, and a digital interface.
• Programmable Frequency: It offers a programmable frequency synthesizer, allowing for flexible input frequencies to accommodate different satellite systems.
• Low Power Consumption: Designed for power-sensitive applications, the receiver maintains excellent performance while minimizing power usage.
• Advanced Tracking: With its high level of integration and advanced signal processing, the MAX2769CETI+ provides robust signal tracking even in challenging environments.

Applications

The device is well-suited for a variety of applications, including:

• Automotive navigation systems
• Handheld personal navigation devices
• Marine and avionics navigation equipment
• Location-based services and telematics
• Precision timing devices

Technical Specifications

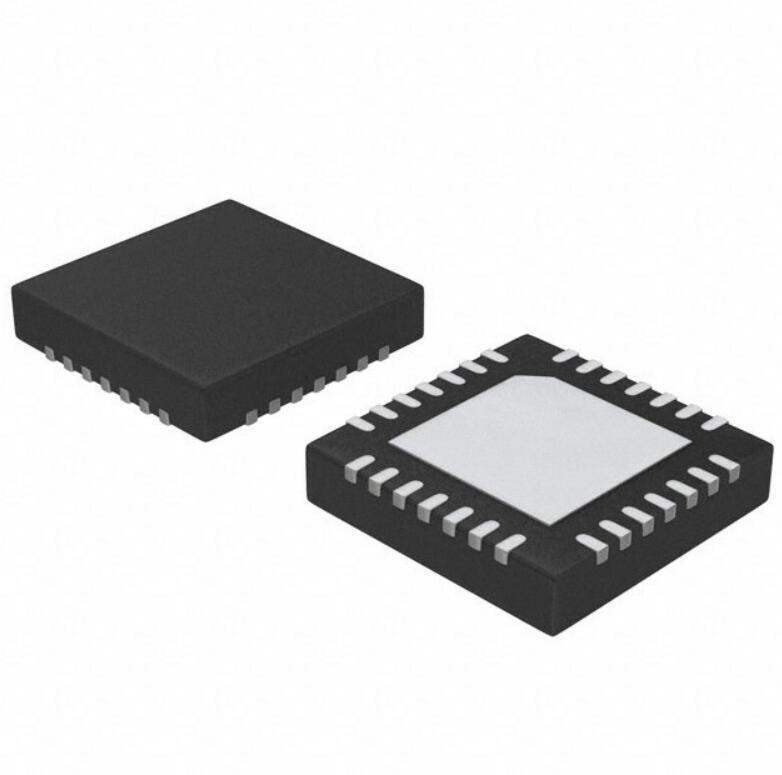

The MAX2769CETI+ operates over a wide temperature range and is available in a compact, 28-pin Thin QFN package. It requires a single 2.7V to 3.3V power supply and has a flexible interface that is compatible with a variety of baseband processors.

Ordering Information

The MAX2769CETI+ is available for order from Analog Devices Inc., and can be sourced through authorized distributors. For detailed specifications, application notes, and design resources, please visit the official Analog Devices website or contact their sales and support team.
