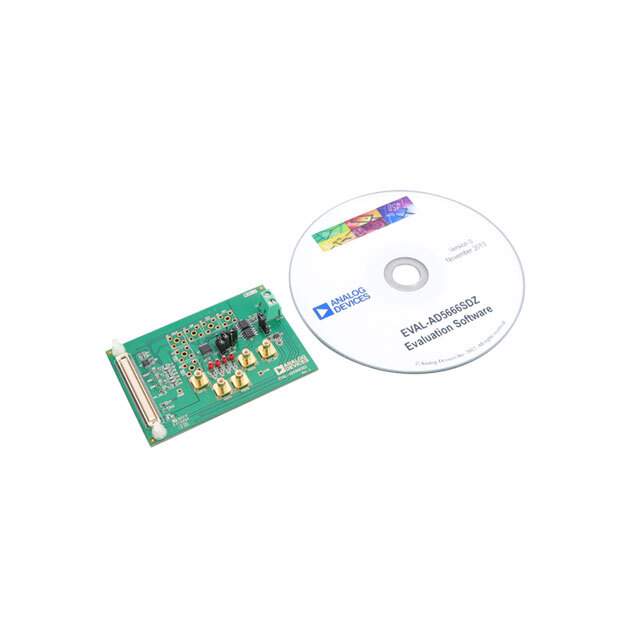

EVAL-AD5666SDZ Product Overview

The EVAL-AD5666SDZ is a high-performance evaluation board presented by Analog Devices Inc., designed specifically for the AD5666, a quad 16-bit digital-to-analog converter (DAC). The AD5666, which is a member of the nanoDAC+™ family, offers exceptional accuracy and stability, making it an ideal solution for precision control applications.

Key Features

• Quad 16-bit DAC channels
• 2.7 V to 5.5 V power supply range
• On-chip output amplifiers
• Low power operation
• High relative accuracy (INL): ±2 LSB maximum
• Integrated 2.5 V, 2 ppm/°C reference (enabled by default)
• User-selectable gain setting via jumpers
• Flexible serial interface with SPI/QSPI/Microwire compatibility
• Compact form factor for easy integration into existing systems

Applications

The EVAL-AD5666SDZ is well-suited for a wide range of applications, including:

• Process control and automation
• Data acquisition systems
• Portable battery-powered instruments
• Digital gain and offset adjustment
• Programmable voltage and current sources

Design and Integration

The evaluation board is equipped with all necessary features to showcase the capabilities of the AD5666 DAC. It includes an on-board reference and boasts a user-friendly interface that allows designers to quickly and easily test the features of the DAC. The board can be controlled by the system demonstration platform controller board (SDP-CB1Z), which is available separately. The EVAL-AD5666SDZ comes with a comprehensive software package that enables users to generate a variety of waveforms, run performance analyses, and configure the DAC settings through an intuitive graphical user interface (GUI).

Additional Resources

For further information and technical support, users can access detailed datasheets, user manuals, and application notes on the Analog Devices Inc. website. The EVAL-AD5666SDZ is an essential tool for engineers and designers looking to evaluate the performance and features of the AD5666 DAC in their applications.
