Same model may have multiple batches, images only for reference.

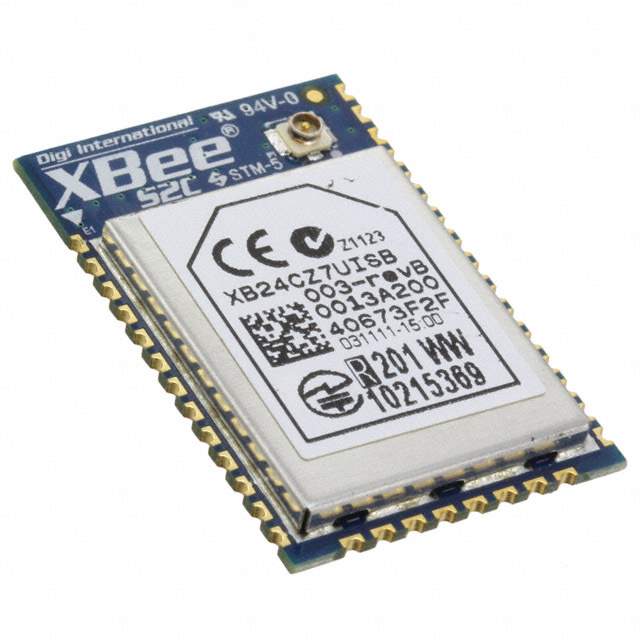

XB24CZ7UISB003 Real Image
Same model may have multiple batches, images only for reference.

XB24CZ7UISB003

Part No XB24CZ7UISB003
Manufacturer Digi International
Catalog RF Receivers
Description RX TXRX MODULE 802.15.4 U.FL SMD / 802.15.4 Zigbee® Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
Datasheet
XB24CZ7UISB003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Digi
Series XBee® ZigBee®
Package Tray
Product Status Not For New Designs
RF Family/Standard 802.15.4
Protocol Zigbee®
Modulation DSSS
Frequency 2.4GHz
Data Rate 1Mbps
Power - Output 8dBm
Sensitivity -102dBm
Serial Interfaces SPI, UART
Antenna Type Antenna Not Included, U.FL
Utilized IC / Part EM357
Memory Size 32kB Flash, 2kB RAM
Voltage - Supply 2.1V ~ 3.6V
Current - Receiving 28mA ~ 45mA
Current - Transmitting 33mA ~ 59mA
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
Base Product Number XB24CZ7
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Other Names 602-1246
Standard Package 36
Win Source Part Number 1196803-XB24CZ7UISB003
Ultra Librarian 3D Model Ultra Librarian XB24CZ7UISB003 CAD Model

Description

The XBee® ZigBee® XB24CZ7UISB003 is a high-performance RF transceiver module and modem manufactured by Digi.

  • Series: XBee® ZigBee®
  • Frequency: 2.4GHz
  • Protocol: Zigbee®
  • Data Rate: 1Mbps
  • Memory Size: 32kB Flash, 2kB RAM
  • Antenna Type: U.FL
  • Power Output: 8dBm
  • Sensitivity: -102dBm
  • Receiving Current: 28mA ~ 45mA
  • Transmitting Current: 33mA ~ 59mA
  • Voltage Supply: 2.1V ~ 3.6V
  • Package: Module
  • Temperature Range: -40°C ~ 85°C
