Product Overview: LTC4091EDJC#PBF from Analog Devices Inc.

The LTC4091EDJC#PBF is a high-performance, autonomous linear charger and power path manager for single-cell lithium-ion or lithium polymer batteries. Manufactured by Analog Devices Inc., a leader in high-performance analog technology, this product is designed to provide efficient and reliable charging solutions for portable devices.

Key Features:

• Wide Input Voltage Range: Capable of operating with input voltages from 4.5V to 40V, making it versatile for various applications.
• Adjustable Charging Current: Users can set the charge current from 15mA to 500mA through an external resistor, allowing for flexibility in charging different battery capacities.
• Integrated PowerPath Control: Ensures that the system remains operational even when the battery is being charged, providing an uninterrupted power supply to the load.
• Thermal Regulation: Protects the LTC4091EDJC#PBF from overheating by automatically reducing charge current during high temperature conditions.
• Low Dropout Voltage: Features a low dropout voltage, which enables charging under a wide range of supply conditions.
• Multiple Safety Features: Includes overvoltage protection, thermal shutdown, and a timer for charge termination to ensure safe operation.

Applications:

The LTC4091EDJC#PBF is ideal for use in a variety of applications, including:

• Portable Medical Devices
• Handheld Instruments
• Industrial Equipment
• Backup Battery Systems
• Uninterruptible Power Supplies

Product Specifications:

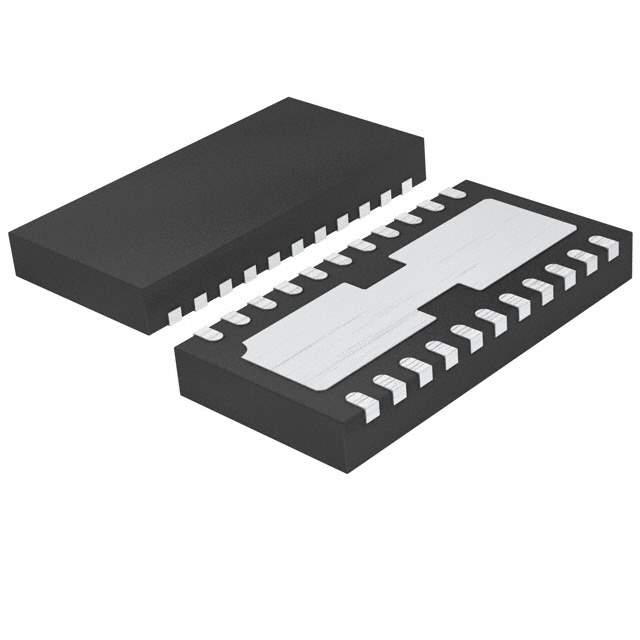

Encased in a compact, 22-lead DFN package, the LTC4091EDJC#PBF is optimized for space-constrained applications. Its precision charge voltage accuracy is set at ±1% and it comes with a programmable charge timer for added control and safety. The device also supports a "Battery Present" status output, which is crucial for systems that require battery status monitoring.

With its robust feature set and Analog Devices' reputation for quality, the LTC4091EDJC#PBF stands out as a reliable solution for managing power and charging in critical portable devices.
