The HMC441LP3ETR from Analog Devices Inc. is a high-performance, gallium arsenide (GaAs), pseudomorphic high electron mobility transistor (pHEMT) monolithic microwave integrated circuit (MMIC) power amplifier that operates in the frequency range of 6 GHz to 20 GHz. This versatile component is designed for a wide range of applications, including point-to-point radios, military & space, fiber optics, and test instrumentation.

Key Features

• Frequency Range: The amplifier covers a broad frequency spectrum from 6 GHz to 20 GHz, making it suitable for various high-frequency applications.
• Output Power: It delivers +29 dBm of saturated output power, providing a robust signal for your communication or testing needs.
• Gain: With a gain of 17 dB, the HMC441LP3ETR ensures signal strength is maintained or boosted as required for specific applications.
• Power Added Efficiency: The device offers a power added efficiency (PAE) of 20%, optimizing the balance between power output and energy consumption.
• Supply Voltage: It operates on a supply voltage of +5V, ensuring compatibility with standard power supplies.

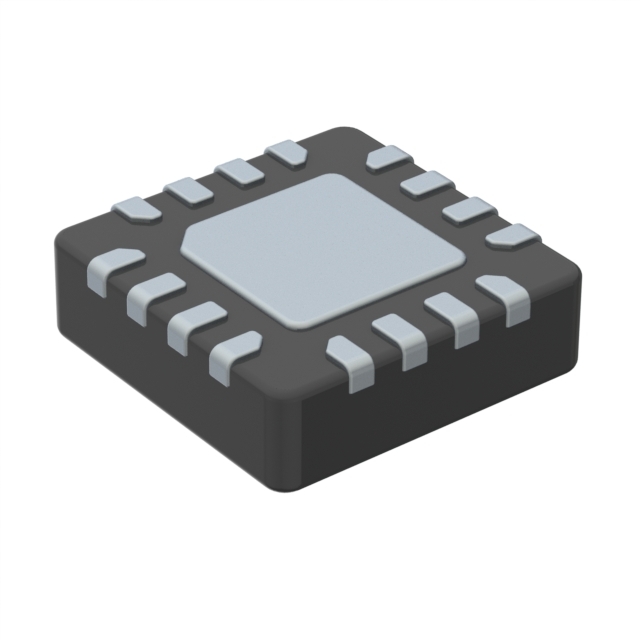

• Packaging: The HMC441LP3ETR comes in a compact 3x3 mm QFN leadless package, which conserves space on printed circuit boards.
• Lead-Free and RoHS Compliant: In adherence to environmental standards, the product is lead-free and RoHS compliant, reducing the environmental impact and meeting global regulations.

Applications

• Point-to-Point and Point-to-Multipoint Radios
• Military Radar and ECM Systems
• Space Telecommunications
• Fiber Optic Applications
• Test Instrumentation

The HMC441LP3ETR is an example of Analog Devices Inc.'s dedication to providing cutting-edge technology for complex and demanding applications. Its combination of high frequency operation, significant gain, and efficient power usage makes it an ideal choice for designers seeking to enhance their RF and microwave capabilities.
