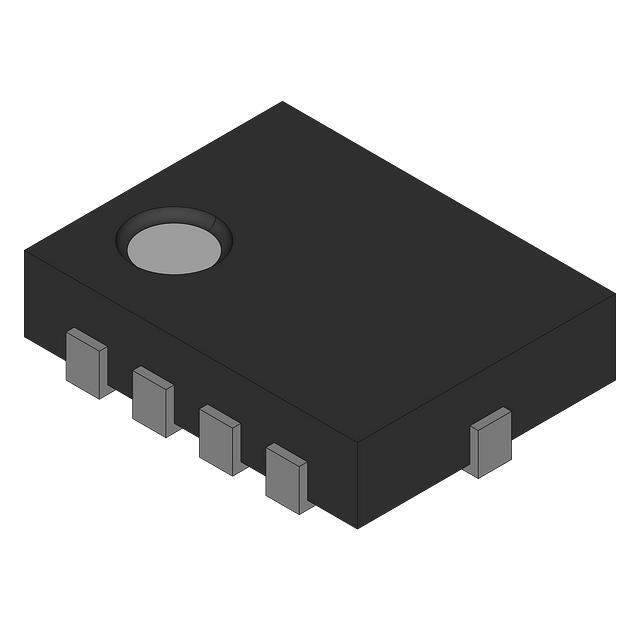

FSA223L10X Real Image
Same model may have multiple batches, images only for reference.

FSA223L10X

Part No FSA223L10X
Manufacturer Fairchild/ON Semiconductor
Catalog Interface - Analog Switches - Special Purpose
Description USB2.0 High-Speed (480Mbps) and Audio Switches with Negative Signal Capability
Datasheet
FSA223L10X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Part Status Obsolete(EOL)
Applications Audio, USB
Switch Circuit DPDT
Number of Channels 1
On-State Resistance (Maximum) 6 Ohm (USB), 6 Ohm (Audio)
Operating Supply Voltage 2.7 V ~ 5.5 V
-3db Bandwidth 720MHz
Features USB 2.0
Operating Temperature Range -40°C ~ 85°C (TA)
Package 10-UFQFN
Manufacturer Package 10-MicroPak
Win Source Part Number 1175838-FSA223L10X
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 5k pcs
Family Name FSA223
Introduction Date July 01, 2007
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian FSA223L10X CAD Model

Description

The FSA223L10X is a high-performance DPDT switch from Fairchild/ON Semiconductor.

  • On-State Resistance: 6 ohms for both USB and audio applications
  • Ideal for: Use in audio and USB switching circuits
  • Suitable for: Use in a wide range of applications, including audio and USB switching circuits, portable devices, and battery-powered applications
  • Technology: Advanced CMOS technology
  • Benefits: High performance and low power consumption
  • Package: 10-UFQFN package
  • Operating Voltage: 2.7V to 5.5V
