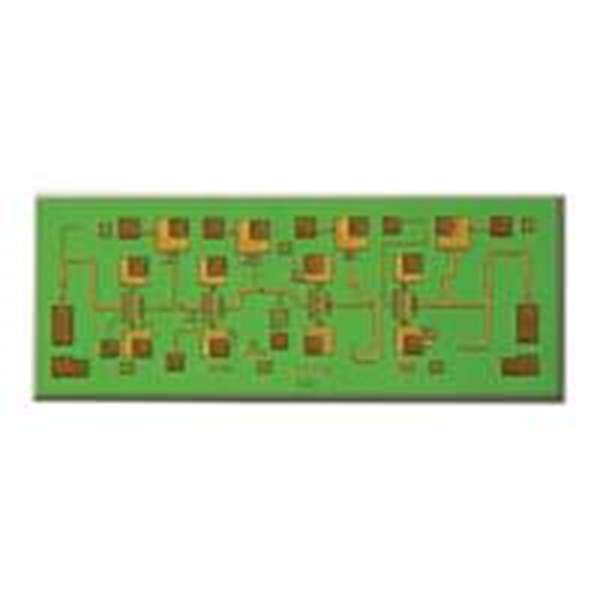

The HMC566-SX from Analog Devices Inc. is a high-performance, wideband Double-Balanced Mixer, designed to cater to the demanding needs of RF and microwave communication systems. This versatile component is an essential building block in applications ranging from telecommunications and satellite communications to test equipment and military systems.

Key Features

• Frequency Range: The HMC566-SX operates over a broad frequency range, with its RF and LO frequency spanning from 6 GHz to 10 GHz, and IF frequency from DC to 3 GHz, making it highly adaptable for various signal processing tasks.
• Conversion Loss: With a typical conversion loss of 8 dB, this mixer maintains excellent signal integrity, ensuring minimal degradation as signals are translated from one frequency to another.
• LO/RF Isolation: It boasts an impressive LO to RF isolation of 25 dB, which minimizes the leakage of the local oscillator signal into the RF path, thereby preserving the purity of the signal.
• Input IP3: The HMC566-SX provides a high input third-order intercept point (IP3) of 20 dBm, indicating robust linearity and the ability to handle high power levels without significant distortion.

Applications

• Point-to-Point and Point-to-Multipoint Radio
• Military Radar, ECM, and ECCM
• Space and Satellite Communications
• Test Instrumentation

Product Specifications

The HMC566-SX is provided in a RoHS-compliant, field-replaceable, SMT package, ensuring ease of integration into a variety of circuit designs. This mixer is also designed to operate over a temperature range of -40°C to +85°C, which guarantees reliable performance in diverse environmental conditions.

Conclusion

With its exceptional performance and versatility, the HMC566-SX from Analog Devices Inc. is an ideal choice for engineers looking to enhance their RF and microwave systems. Its high isolation, low conversion loss, and wide frequency range make it a powerful component for sophisticated electronic designs.
