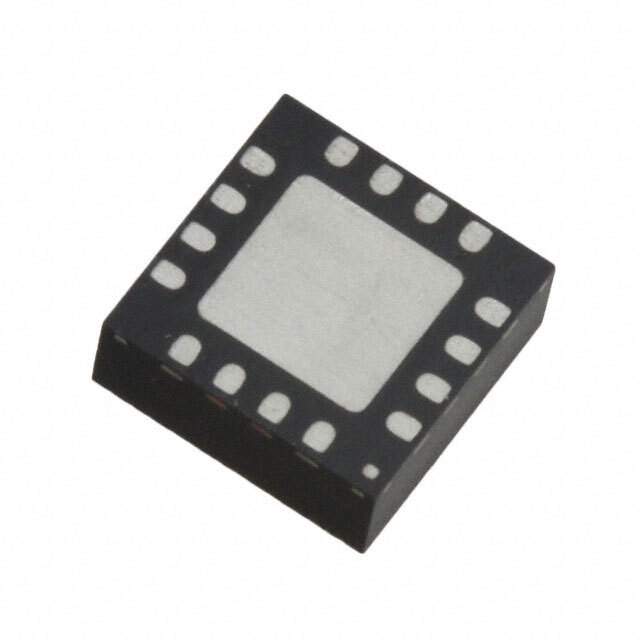

ADXL325BCPZ-RL7

Part No ADXL325BCPZ-RL7
Manufacturer Analog Devices Inc.
Catalog Motion Sensors - Accelerometers
Description ACCELEROMETER 5G ANALOG 16LFCSP / Accelerometer Triple ±5g 2.5V/3.3V 156mV/g to 192mV/g 16-Pin LFCSP EP T/R
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Analog Devices Inc.
Packaging Reel - TR
Status Active
Type Analog
Axis X, Y, Z
Acceleration Range ±5g
Sensitivity (mV/g) 174
Bandwidth 1.6kHz (X,Y), 550Hz (Z)
Output Type Analog Voltage
Supply Voltage - Operating 1.8 V to 3.6 V
Features Adjustable Bandwidth
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 16-LFCSP-LQ (4x4)
Win Source Part Number 135410-ADXL325BCPZ-RL7
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name ADXL325
Introduction Date December 02, 2008
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian ADXL325BCPZ-RL7 CAD Model

Description

ADXL325BCPZ-RL7: High-Performance Accelerometer by Analog Devices Inc.

The ADXL325BCPZ-RL7 is a cutting-edge accelerometer developed by Analog Devices Inc., a leader in high-performance semiconductors. This compact, low-power, 3-axis accelerometer is designed to measure dynamic acceleration resulting from motion, shock, or vibration, making it an ideal choice for a variety of applications in industrial, medical, and consumer electronics markets.

Key Features:

  • 3-Axis Sensing: The ADXL325BCPZ-RL7 can measure acceleration in three dimensions (X, Y, and Z), providing comprehensive motion detection.
  • High Sensitivity: With a sensitivity of 270 mV/g, this accelerometer can detect even slight movements, ensuring accurate readings.
  • Wide Dynamic Range: The device features a selectable measurement range of ±5 g, allowing it to capture both high and low acceleration signals.
  • Low Power Consumption: Designed for battery-powered applications, the ADXL325BCPZ-RL7 operates on a low supply voltage, ranging from 2.0 V to 3.6 V, and maintains low power consumption.
  • Compact Form Factor: Housed in a small, thin LFCSP package (3 mm × 4 mm × 1.45 mm), the accelerometer is suitable for space-constrained applications.
  • Robust Performance: The device is operational over a wide temperature range of -40°C to +85°C, ensuring reliability in harsh environments.
  • Output Data Rate: It offers an output data rate (ODR) that is adjustable via external capacitors.

Applications:

  • Vehicle dynamic control
  • Electronic stability control systems
  • Platform stabilization
  • Medical devices such as patient monitoring systems
  • Mobile and handheld devices
  • Sports and health devices
  • Robotics and UAVs (Unmanned Aerial Vehicles)

The ADXL325BCPZ-RL7 is a testament to Analog Devices Inc.'s commitment to providing high-performance, reliable, and easy-to-integrate components. With its robust feature set and versatile application range, this accelerometer is a top choice for engineers and designers looking to add precise motion detection to their projects.

Whether you're developing the next generation of consumer electronics or working on advanced industrial automation solutions, the ADXL325BCPZ-RL7 offers the performance and durability you need to ensure your products stand out in the marketplace.
