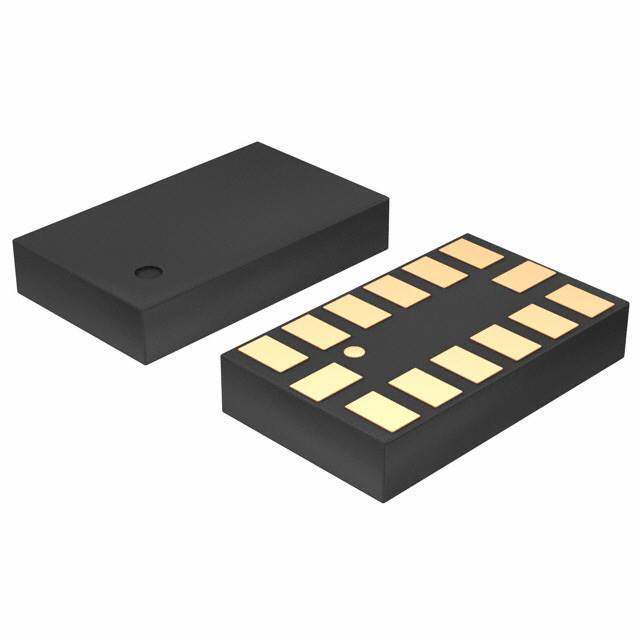

ADXL345XCCZ-RL7

Part No ADXL345XCCZ-RL7
Manufacturer Analog Devices Inc.
Catalog Motion Sensors - Accelerometers
Description ACCEL 2-16G I2C/SPI 14LGA
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Motion Sensors - Accelerometers
Mfr Analog Devices Inc.
Package Tape & Reel
Product Status Obsolete
Mounting Type Surface Mount
Package / Case 14-VFLGA
Supplier Device Package 14-LGA (3x5)
Base Product Number ADXL345
Standard Package 1 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 911149-ADXL345XCCZ-RL7
Ultra Librarian 3D Model Ultra Librarian ADXL345XCCZ-RL7 CAD Model

Description

The ADXL345XCCZ-RL7 is a high-performance, ultra-low power, 3-axis accelerometer with digital I2C/SPI interface protocols, brought to you by Analog Devices Inc. This compact sensor is ideal for a wide range of applications, including mobile device motion detection, gaming, image stabilization, and sports equipment.

Key Features:

  • High Resolution: With a 13-bit, full-resolution measuring capability, the ADXL345XCCZ-RL7 offers precise acceleration measurement, capable of detecting changes less than 1.0 mg.
  • Multiple g-Range Selections: Users can select between ±2g, ±4g, ±8g, or ±16g to capture both motion and vibration with high accuracy.
  • Low Power Consumption: Designed for mobile applications, the device features a low-power mode that reduces current consumption to as little as 40 µA.
  • Activity and Inactivity Detection: Embedded functions allow for the detection of activity and inactivity, enabling intelligent power management for portable devices.
  • Free-Fall Detection: The accelerometer can detect if the device is falling, allowing for the implementation of drop protection and power saving in portable electronics.
  • Tap/Double Tap Detection: The sensor includes programmable interrupts that recognize single and double taps, a feature beneficial for user-interface controls.
  • Data Rate Options: The ADXL345XCCZ-RL7 supports a wide range of data rates from 0.1 Hz to 3200 Hz.
  • Compact and Robust: Housed in a small, thin 3mm x 5mm x 1mm, 14-pin LFCSP package, the accelerometer is suitable for space-constrained applications.

Applications:

  • Smartphones and Tablets
  • Personal Navigation Devices
  • Health and Fitness Tracking
  • Gaming and Pointing Devices
  • Industrial and Instrumentation

The ADXL345XCCZ-RL7 by Analog Devices Inc. is a versatile and reliable solution for adding motion sensing to your next project. Its robust feature set and easy integration make it an excellent choice for developers looking to enhance their products with advanced motion detection capabilities.
