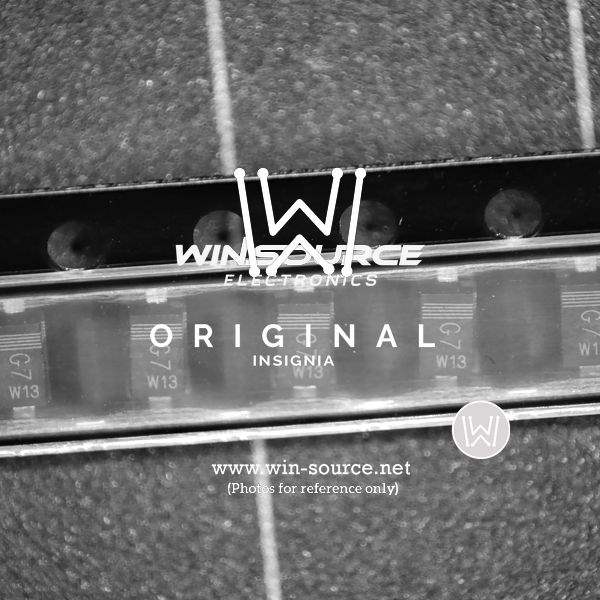

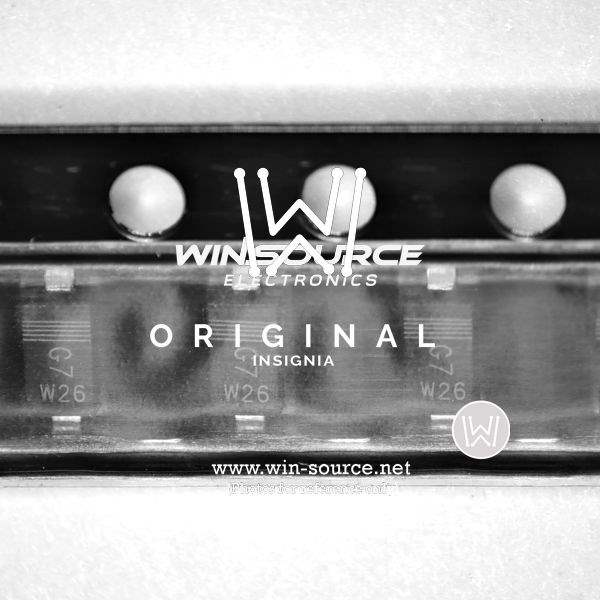

PMEG6010CEGWX Real Image PMEG6010CEGWX Real Image1 PMEG6010CEGWX Real Image2
Same model may have multiple batches, images only for reference.
PMEG6010CEGWX Real Image PMEG6010CEGWX Real Image1 PMEG6010CEGWX Real Image2
PMEG6010CEGWX Real Image PMEG6010CEGWX Real Image1 PMEG6010CEGWX Real Image2
Same model may have multiple batches, images only for reference.

PMEG6010CEGWX

Part No PMEG6010CEGWX
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 1A SOD123 / Diode 60 V 1A Surface Mount SOD-123
Datasheet
PMEG6010CEGWX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Nexperia USA Inc.
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 660 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 60 V
Capacitance @ Vr, F 60pF @ 1V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123
Supplier Device Package SOD-123
Operating Temperature - Junction 150°C (Max)
Base Product Number PMEG6010
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 850819-PMEG6010CEGWX
Ultra Librarian 3D Model Ultra Librarian PMEG6010CEGWX CAD Model

Description

The PMEG6010CEGWX is a fast recovery Schottky diode with a maximum reverse voltage rating of 60V and an average rectified current rating of 1A.

  • Forward Voltage: 660mV @ 1A
  • Reverse Leakage Current: 50μA @ 60V
  • Capacitance: 60pF @ 1V, 1MHz
  • Mounting Type: Surface Mount
  • Package: SOD-123
  • Product Status: Active
  • Manufacturer: Nexperia USA Inc.
