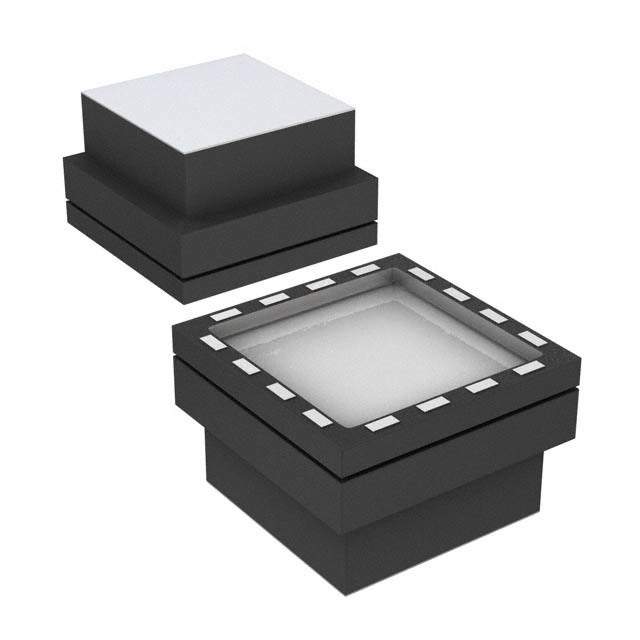

ADIS16080ACCZ

Part No ADIS16080ACCZ
Manufacturer Analog Devices Inc.
Catalog Motion Sensors - Gyroscopes
Description IC ACCEL GYRO RATE I2C 16-LGA
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Analog Devices Inc.
Packaging Tray
Type Digital
Axis Z (Yaw)
Range °/s ±80
Sensitivity (LSB/(°/s)) 10
Bandwidth 40Hz
Output Type SPI
Supply Voltage - Operating 4.75 V to 5.25 V
Operating Supply Current 7mA
Features Adjustable Bandwidth, Temperature Sensor
Temperature Range - Operating -40°C to 85°C (TA)
Dimension 16-BFLGA
Win Source Part Number 1014437-ADIS16080ACCZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ADIS16080ACCZ CAD Model

Description

Analog Devices ADIS16080ACCZ Precision Angular Rate Sensor

The ADIS16080ACCZ is a high-performance, precision angular rate sensor from Analog Devices Inc., designed to meet the demanding needs of industrial and instrumentation applications. This compact, inertial sensor provides accurate rotational rate measurements in a robust, single-axis gyroscope package, making it an ideal solution for a variety of applications, including platform stabilization, navigation, robotics, and motion analysis.

At the heart of the ADIS16080ACCZ lies a MEMS (Micro-Electro-Mechanical Systems) gyroscope sensor that offers excellent bias stability and vibration rejection. The device operates on a single 5V power supply and features a wide measurement range of ±300 degrees per second, with a sensitivity of 0.025°/sec/LSB, ensuring precise and reliable readings even in challenging environments.

The ADIS16080ACCZ is housed in a compact 24-lead surface-mount LCC (Leadless Chip Carrier) package, which is hermetically sealed for robustness against moisture and particulate contamination. The sensor's digital output is accessible via a standard SPI (Serial Peripheral Interface), which allows for easy integration into existing systems and reduces the complexity of system design.

Key features of the ADIS16080ACCZ include:

  • Single-axis angular rate sensing
  • ±300°/sec measurement range
  • High stability and low drift over temperature
  • 5V single-supply operation
  • SPI-compatible serial interface
  • Self-test functionality for system-level diagnostics
  • Compact and robust LCC package

Engineers and designers can leverage the ADIS16080ACCZ's performance characteristics to improve the accuracy and reliability of their systems. With its built-in self-test capability, users can easily verify sensor functionality after installation or during regular maintenance checks. This feature, along with the sensor's overall durability, contributes to reduced downtime and maintenance costs.

Analog Devices Inc. is known for its high-quality products, and the ADIS16080ACCZ is no exception. It represents a blend of advanced MEMS technology with the company's extensive expertise in signal processing to deliver a sensor solution that is both powerful and user-friendly. Whether for industrial control, vehicle navigation, or advanced robotics, the ADIS16080ACCZ is an excellent choice for professionals seeking precision and dependability.
