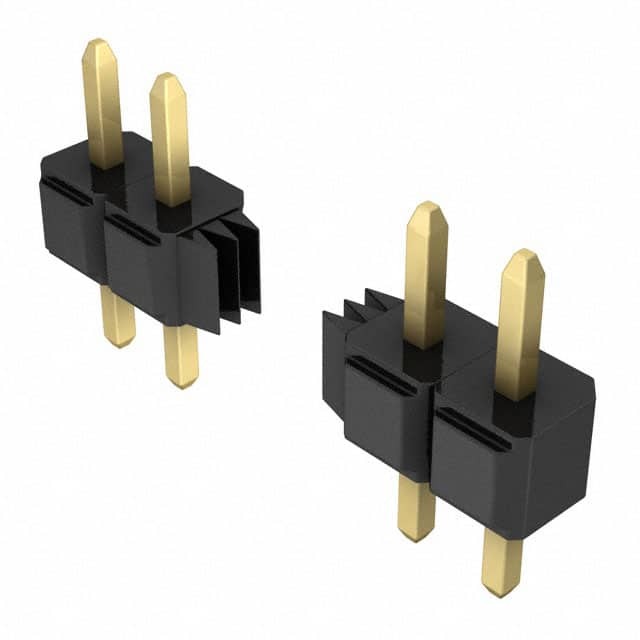

Same model may have multiple batches, images only for reference.

924717-10-08-EU

Get a Quote

Part No	924717-10-08-EU
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 8POS 2.54MM / Connector Header Through Hole 8 position 0.100" (2.54mm)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	3M
Series	929
Package	Bulk
Product Status	Obsolete
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	8
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.125" (3.18mm)
Contact Length - Post	0.110" (2.79mm)
Overall Contact Length	0.335" (8.51mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold
Contact Material	Copper Alloy
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.5A
Contact Finish Thickness - Post	10.0µin (0.25µm)
Base Product Number	924717
Standard Package	100 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	853382-924717-10-08-EU
Ultra Librarian 3D Model	Ultra Librarian 924717-10-08-EU CAD Model

Description

The 853382-924717-10-08-EU is a male pin header connector manufactured by 3M.

Category: Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Series Number: 929
Positions: 8
Header Design: Breakaway
Termination: Solder
Row: Single
Positions Loaded: All
Contact Material: Copper Alloy
Mating Contact Finish: Gold
Post Contact Finish: Gold
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
Pitch: 0.100" (2.54mm)
Temperature Range: -40°C to 105°C
Product Status: Obsolete
