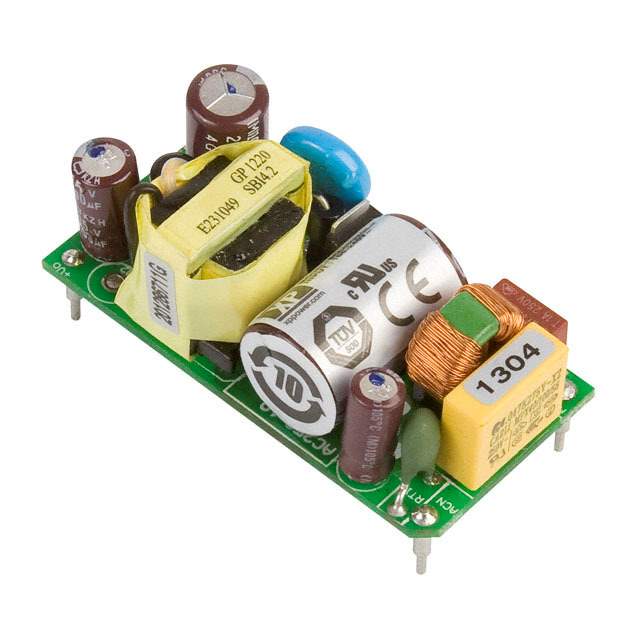

ECL10US12-P Real Image
Same model may have multiple batches, images only for reference.

ECL10US12-P

Part No ECL10US12-P
Manufacturer XP Power
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 12V 10W / Open Frame AC DC Converters 1 Output 12V 830mA 85 ~ 264 VAC Input
Datasheet
ECL10US12-P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr XP Power
Series ECL (10W)
Package Box
Type Open Frame
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC
Voltage - Output 1 12V
Current - Output (Max) 830mA
Power (Watts) 10 W
Applications ITE (Commercial)
Features Universal Input
Temperature Range - Operating -20°C ~ 70°C (With Derating)
Efficiency 78%
Mounting Type Through Hole
Package / Case 4-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.90" H (50.8mm x 25.4mm x 22.9mm)
Approval Agency CSA, cUL, EN, IEC, UL
Standard Number 62368-1
Line Regulation ±0.5%
Load Regulation ±1%
Weight 0.057 lb (25.85 g)
Base Product Number ECL10US12
Standard Package 8
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 1351344-ECL10US12-P
Ultra Librarian 3D Model Ultra Librarian ECL10US12-P CAD Model

Description

The ECL10US12-P is a 10W open frame AC/DC converter from the ECL series by XP Power.

  • Input Voltage: 85~264VAC
  • Output Voltage: 12V
  • Maximum Output Current: 830mA
  • Efficiency: 78%
  • Line Regulation: ±0.5%
  • Load Regulation: ±1%
  • Application: ITE (Commercial)
  • Package: 4-DIP Module
  • Operating Temperature: -20°C ~ 70°C (with derating)
  • Weight: 0.057lbs (25.85g)
  • Approvals: CSA, cUL, EN, IEC, UL
  • Standard Number: 62368-1
