Products specifications

Category RF/IF and RFID>RF Transceiver ICs
Mfr NXP USA Inc.
Series Automotive, AEC-Q100, Kinetis KW36A
Package Tray
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v5.0
Modulation FSK, GFSK, MSK
Frequency 2.4GHz
Data Rate (Max) 1Mbps
Power - Output 5dBm
Sensitivity -95dBm
Memory Size 265kB Flash, 64kB RAM
Serial Interfaces I2C, SPI, UART
Voltage - Supply 1.71V ~ 3.6V
Current - Receiving 6.3mA
Current - Transmitting 5.7mA
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting SMD (SMT)
Package / Case 64-VFLGA
Supplier Device Package 64-VFLGA (7x7)
Base Product Number MKW36
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Other Names 568-14677,MKW36A512VHT4-ND,935362508557
Standard Package 260
Win Source Part Number 989573-MKW36A512VHT4
Ultra Librarian 3D Model Ultra Librarian MKW36A512VHT4 CAD Model

Description

The NXP MKW36A512VHT4 is a highly integrated, low-power, multi-protocol microcontroller designed to cater to the needs of modern wireless applications. This device is part of NXP's Kinetis family of microcontrollers, which are renowned for their energy efficiency, performance, and ease of use.

At the heart of the MKW36A512VHT4 is an ARM Cortex-M0+ core, which operates at up to 48 MHz, offering a balance between power consumption and processing capability. This makes the MKW36A512VHT4 an ideal choice for running applications in battery-operated devices where power efficiency is paramount.

With 512 KB of flash memory and 64 KB of SRAM, the MKW36A512VHT4 provides ample space for application code and data storage. This generous memory allocation allows developers to implement complex algorithms and protocols without worrying about space constraints.

Connectivity is a strong suit of this microcontroller. It supports Bluetooth Low Energy (BLE) for short-range wireless communication, enabling the creation of IoT devices that can easily connect to smartphones and other BLE-capable devices. Additionally, the microcontroller includes a range of other communication interfaces such as UART, SPI, and I2C, allowing for versatile peripheral connectivity.

NXP has equipped the MKW36A512VHT4 with a host of features to ensure reliable operation in various environments. These features include a 16-bit ADC (Analog-to-Digital Converter), a DAC (Digital-to-Analog Converter), and multiple flexible timers. The device also comes with a range of security features, such as hardware CRC (Cyclic Redundancy Check) engine to ensure data integrity and a Random Number Generator (RNG) for cryptographic operations.

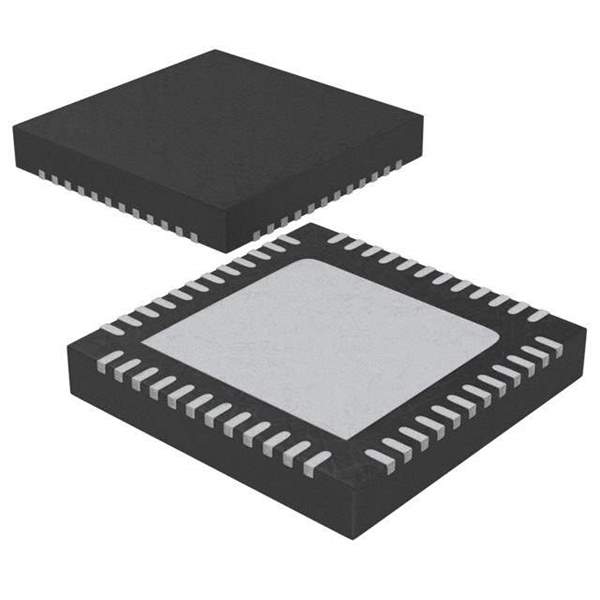

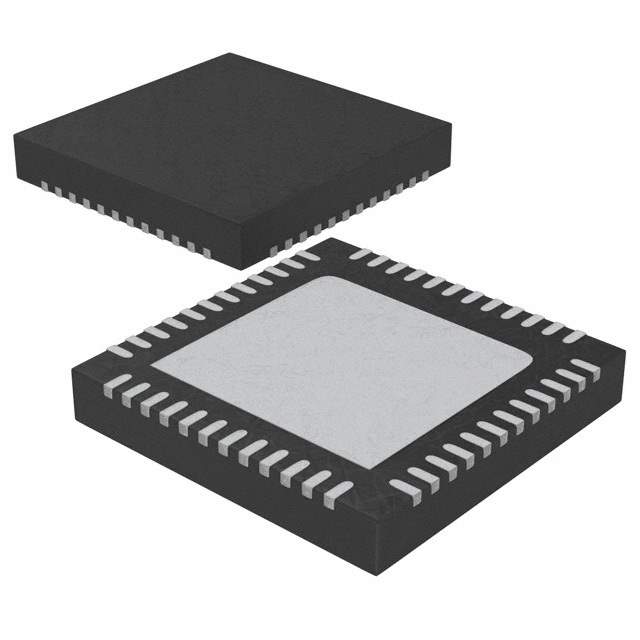

The MKW36A512VHT4 is housed in a 7x7 mm 48 QFN package, making it suitable for space-constrained applications. Its operating temperature range from -40°C to +85°C ensures that the microcontroller performs reliably in a wide range of environmental conditions.

Overall, the NXP MKW36A512VHT4 microcontroller is a versatile and powerful component for designers looking to develop advanced wireless products with extended battery life and robust connectivity options.
