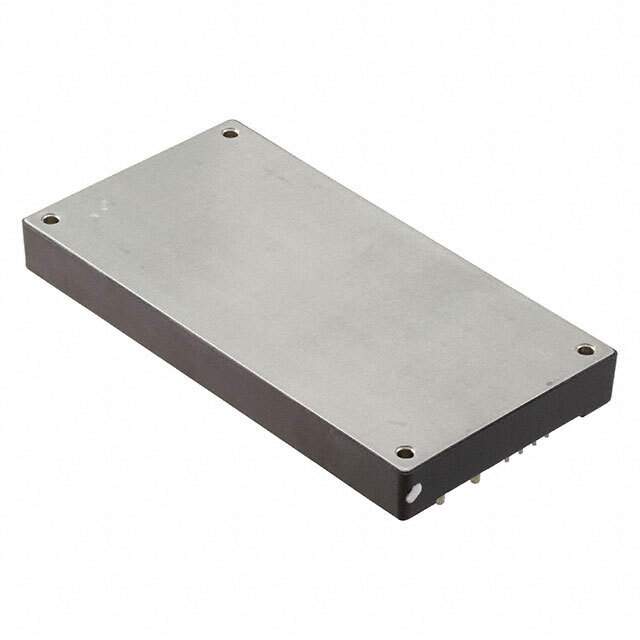

Same model may have multiple batches, images only for reference.

PFE500SA-12

Name: PFE500SA-12
Brand: TDK-Lambda Americas Inc.
SKU: 1351531
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PFE500SA-12
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Board Mount AC DC Converters
Description	AC/DC CONVERTER 12V 396W / Enclosed AC DC Converters 1 Output 12V 33A 85 ~ 265 VAC Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - AC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	PFE500SA (500W)
Package	Bulk
Type	Enclosed
Number of Outputs	1
Voltage - Input	85 ~ 265 VAC
Voltage - Output 1	12V
Current - Output (Max)	33A
Power (Watts)	396 W
Applications	ITE (Commercial)
Features	Remote On/Off, Universal Input
Temperature Range - Operating	-40°C ~ 100°C (With Derating)
Efficiency	86%
Mounting Type	Through Hole
Package / Case	11-DIP Module, Full Brick
Size / Dimension	4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm)
Approval Agency	CE, CSA, UL
Standard Number	60950-1; 62368-1
Line Regulation	48mV
Load Regulation	48mV
Weight	0.441 lb (200.03 g)
Base Product Number	PFE500
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.6018
California Prop 65	Warning Information
Win Source Part Number	1351531-PFE500SA-12
Ultra Librarian 3D Model	Ultra Librarian PFE500SA-12 CAD Model

Description

The TDK-Lambda Americas Inc. PFE500SA-12 is a 500W enclosed AC DC converter from the PFE500SA series.

Power Output: 396 W
Voltage Input: 85 ~ 265 VAC
Voltage Output: 12V
Current Output: 33A
Efficiency: 86%
Line Regulation: 48mV
Load Regulation: 48mV
Remote On/Off: Feature
Input: Universal
Mounting: Through Hole
Package/Case: 11-DIP module, full brick
Size: 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm)
Weight: 0.441 lb (200.03 g)
Approvals: CE, CSA, and UL
Standards: 60950-1; 62368-1
REACH: Unaffected
