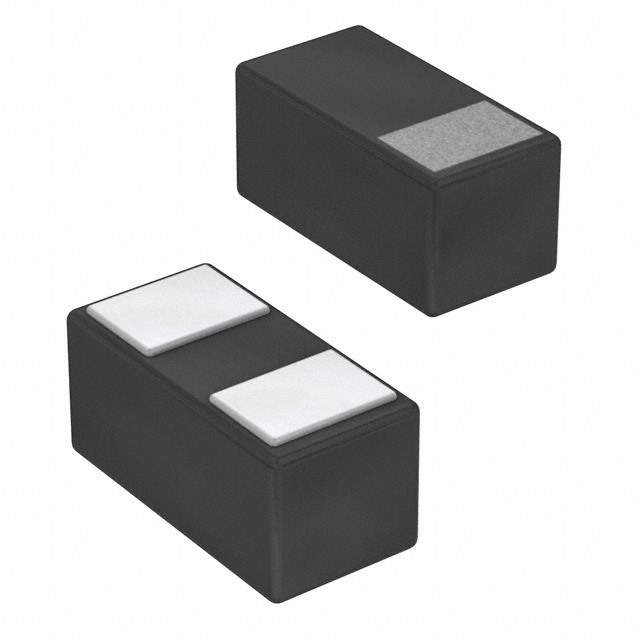

Introducing the TVS8501V5MUT5G from ON Semiconductor

The TVS8501V5MUT5G is a state-of-the-art transient voltage suppressor (TVS) diode designed by ON Semiconductor, a leading innovator in energy-efficient electronics. This robust TVS diode is specifically engineered to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and electrostatic discharge (ESD).

Key Features

• Peak Pulse Power Dissipation: With an impressive peak pulse power dissipation of 850 Watts at 10/1000μs waveform, this diode is capable of handling significant transient power spikes with ease.
• ESD Protection: It offers excellent ESD protection of ±30kV (air discharge) and ±30kV (contact discharge), safeguarding your devices from the most common electrostatic threats.
• Low Clamping Voltage: The low clamping voltage ensures that sensitive circuitry is well-protected while maintaining signal integrity during a transient voltage event.
• Fast Response Time: The TVS8501V5MUT5G boasts a fast response time, typically responding to over-voltage events in less than 1 picosecond, providing immediate protection for your circuits.
• Low Leakage Current: It has an ultra-low leakage current, making it an ideal choice for power-sensitive applications.
• Compact Package: Packaged in a small, easy-to-integrate SOD-723 package, it occupies minimal board space, making it perfect for high-density circuit designs.

Applications

The TVS8501V5MUT5G is versatile and can be used in a wide range of applications, including:

• Portable Electronics
• Data Lines for Telecommunication Devices
• Microcontroller Input Protection
• Power Supply Protection
• Computer Peripherals

Reliability and Quality

ON Semiconductor's commitment to quality ensures that the TVS8501V5MUT5G meets the highest industry standards for reliability and performance. This TVS diode is an ideal solution for designers looking to enhance the durability and longevity of their electronic systems. With its robust protection features and compact footprint, the TVS8501V5MUT5G is an excellent choice for safeguarding sensitive components against transient voltages.
