Same model may have multiple batches, images only for reference.

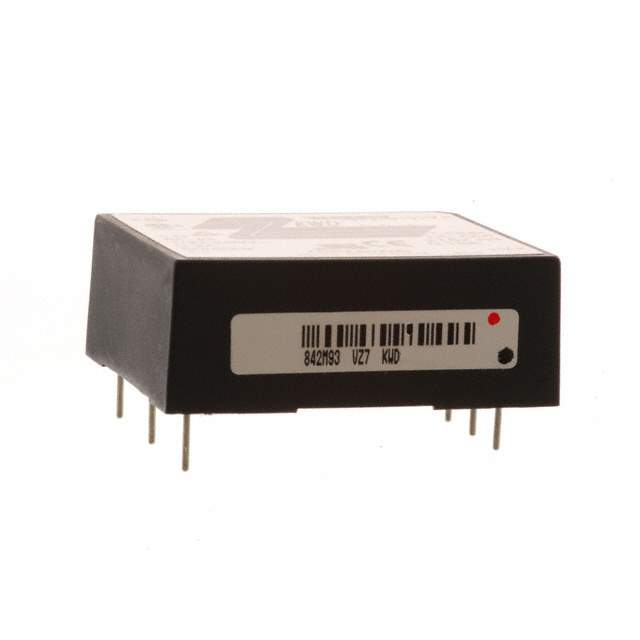

KWD5-1515 Real Image
Same model may have multiple batches, images only for reference.

KWD5-1515

Part No KWD5-1515
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER +/-15V 5W / Enclosed AC DC Converters 2 Output 15V -15V 180mA, 180mA 85 ~ 265 VAC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr TDK-Lambda Americas Inc
Series KW (5W)
Package Bulk
Product Status Not For New Designs
Type Enclosed
Number of Outputs 2
Voltage - Input 85 ~ 265 VAC
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 180mA, 180mA
Power (Watts) 5 W
Applications ITE (Commercial)
Features Universal Input
Temperature Range - Operating -10°C ~ 70°C (With Derating)
Efficiency 73%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 2.16" L x 1.77" W x 0.81" H (54.9mm x 45.0mm x 20.5mm)
Approval Agency CE, CSA, TUV, UL
Line Regulation 0.4%
Load Regulation 0.8%
Weight 0.166 lb (75.3 g)
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
California Prop 65 Warning Information
Win Source Part Number 1349691-KWD5-1515
Ultra Librarian 3D Model Ultra Librarian KWD5-1515 CAD Model

Description

The KW (5W) AC DC Converter is a universal input enclosed power supply with a 2.16" L x 1.77" W x 0.81" H (54.9mm x 45.0mm x 20.5mm) size.

  • Manufacturer: TDK-Lambda Americas Inc
  • Application: ITE (Commercial)
  • Power Output: 5W
  • Voltage Input Range: 85 ~ 265 VAC
  • Output Voltages: 15V and -15V
  • Efficiency: 73%
  • Regulation: 0.4% (line) and 0.8% (load)
  • Mounting Type: Through-hole
  • Package: 6-DIP Module
  • Operating Temperature Range: -10°C ~ 70°C (With Derating)
  • Certifications: CE, CSA, TUV, UL
