Same model may have multiple batches, images only for reference.

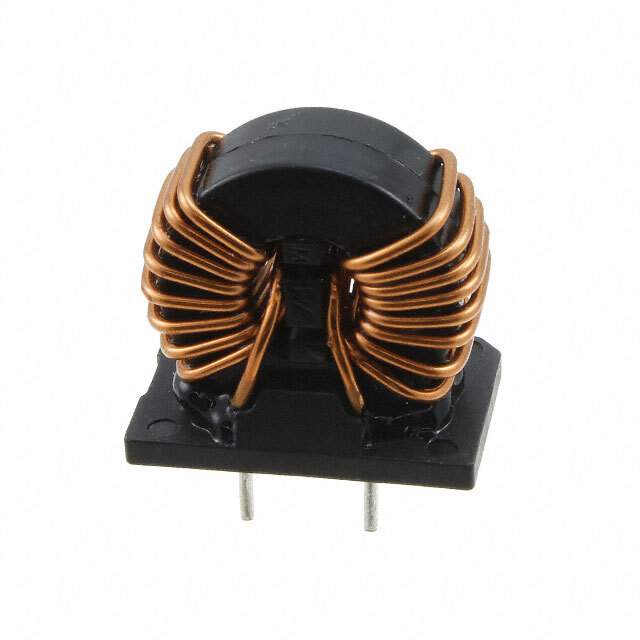

7448041104 Real Image
Same model may have multiple batches, images only for reference.

7448041104

Part No 7448041104
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Datasheet
7448041104 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Würth Elektronik
Series WE-CMBNC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 4 mH @ 10 kHz
Current Rating (Max) 11A
DC Resistance (DCR) (Max) 8.2mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Dimension 1.102" L x 0.748" W (28.00mm x 19.00mm)
Height (Max) 1.102" (28.00mm)
Package / Case Vertical, 4 PC Pin
Other Names 732-5590
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276448-7448041104
Ultra Librarian 3D Model Ultra Librarian 7448041104 CAD Model

Description

The Würth Elektronik WE-CMBNC is a common mode choke filter that is ideal for power line filtering.

  • Manufacturer: Würth Elektronik
  • Filter Type: Common Mode Choke Filter
  • Application: Power Line Filtering
  • Voltage Rating - AC: 250V
  • Current Rating (Max): 11A
  • Inductance @ Frequency: 4 mH @ 10 kHz
  • DC Resistance (DCR) (Max): 8.2mOhm
  • Mounting Type: Through-Hole
  • Package: Vertical, 4 PC Pin
