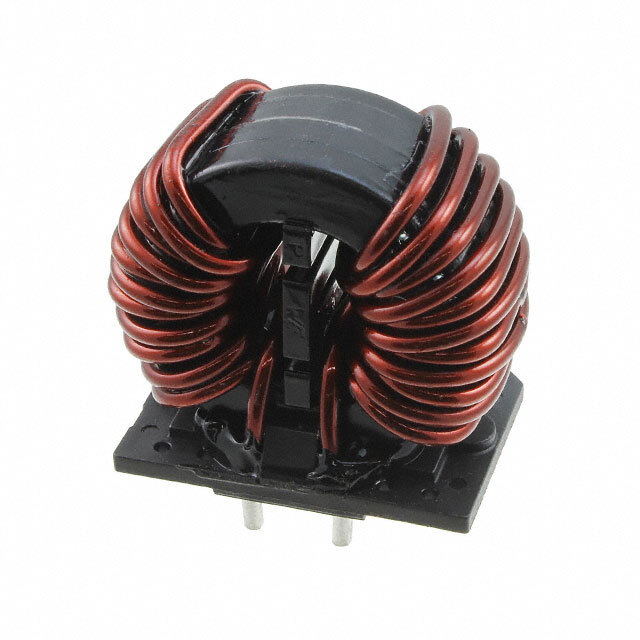

Same model may have multiple batches, images only for reference.
7448030509 Wurth Electronics Inc – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

7448030509

Part No 7448030509
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 9MH 5A 2LN TH
Datasheet
7448030509 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 9 mH @ 10 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 32mOhm
Voltage Rating - AC 300V
Temperature Range - Operating -55° C ~ 125°C
Features Nanocrystalline Core
Mounting Type Through Hole
Size / Dimension 0.906" L x 0.531" W (23.00mm x 13.50mm)
Height (Max) 1.024" (26.00mm)
Case / Package Vertical, 4 PC Pin
Package Bulk
Supply and Demand Status Limited
Win Source Part Number 1507165-7448030509
Ultra Librarian 3D Model Ultra Librarian 7448030509 CAD Model
