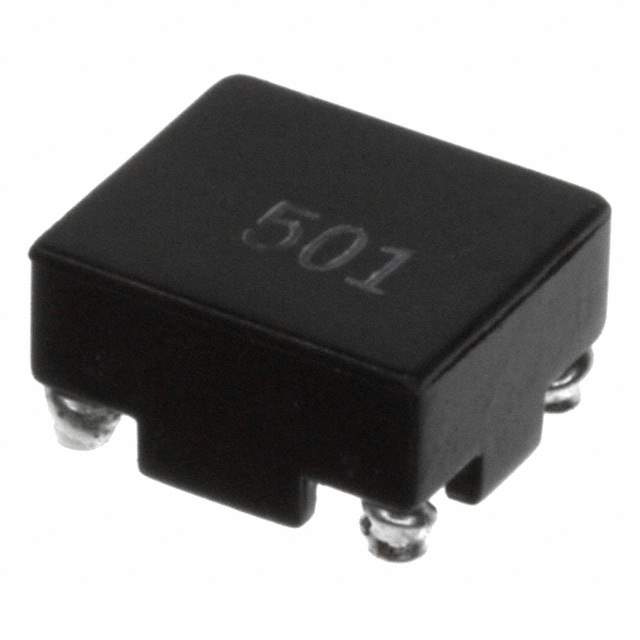

744273501 Real Image
Same model may have multiple batches, images only for reference.

744273501

Part No 744273501
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 5UH 5A 2LN 500 OHM SMD / 5 μH @ 100 kHz 2 Line Common Mode Choke Surface Mount 500 Ohms @ 130 MHz 5A DCR 5.5mOhm
Datasheet
744273501 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL5
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 500 Ohms @ 130 MHz
Inductance @ Frequency 5 µH @ 100 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 5.5mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.374" L x 0.327" W (9.50mm x 8.30mm)
Height (Max) 0.209" (5.30mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 849091-744273501
Ultra Librarian 3D Model Ultra Librarian 744273501 CAD Model

Description

The WE-SL5 is a common mode choke designed for signal line applications. It features a size of 0.374" L x 0.327" W (9.50mm x 8.30mm) and a height of 0.209" (5.30mm), providing a compact solution for noise suppression.

  • Maximum Current Rating: 5A
  • DC Resistance (DCR): 5.5mOhm
  • Impedance: 500 Ohms @ 130 MHz
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Standard Package: 1,000 pcs
  • Operating Temperature: -40°C to 125°C
  • Product Status: Active
  • Manufacturer: Wurth Electronics Inc
