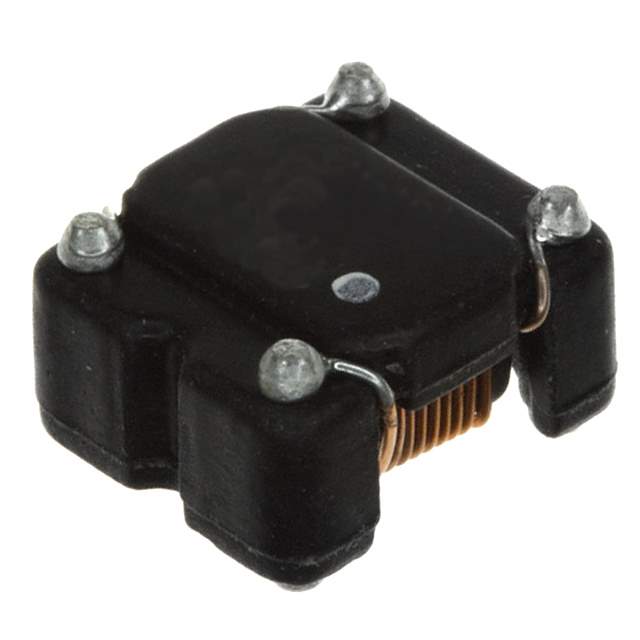

744272221 Real Image
Same model may have multiple batches, images only for reference.

744272221

Part No 744272221
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 220UH 2.2A 2LN 780 OHM SMD
Datasheet
744272221 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL5
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 780 Ohms @ 15 MHz
Inductance @ Frequency 220 µH @ 100 kHz
Current Rating (Max) 2.2A
DC Resistance (DCR) (Max) 32mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.394" L x 0.343" W (10.00mm x 8.70mm)
Height (Max) 0.256" (6.50mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 800 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857313-744272221
Ultra Librarian 3D Model Ultra Librarian 744272221 CAD Model

Description

The WE-SL5 series is a category of common mode chokes designed for filtering signal lines in electronic circuits. Wurth Electronics Inc manufactures it.

  • Size: 0.394" L x 0.343" W (10.00mm x 8.70mm)
  • Current Rating: 2.2A (Maximum)
  • Impedance: 780 Ohms @ 15 MHz
  • Inductance: 220 µH @ 100 kHz
  • Mounting Type: Surface Mount
  • Package: Horizontal, 4 PC pad
  • Operating Temperature: -40°C to 125°C
  • Product Status: Active
