Products specifications

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr ON Semiconductor
Series Mosorb™
Package Bulk
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 53V
Voltage - Breakdown (Min) 58.9V
Voltage - Clamping (Max) @ Ipp 85V
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 175°C (TJ)
Mounting Type Through Hole

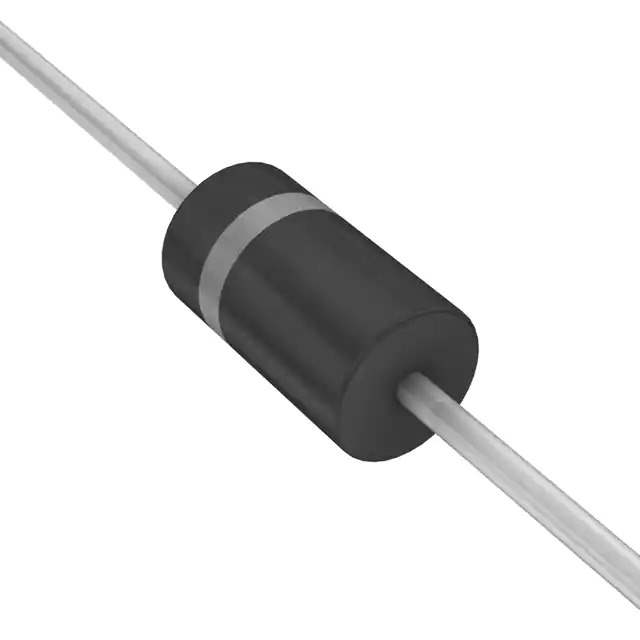

Package / Case DO-201AD, Axial
Supplier Device Package Axial
Base Product Number 1N6290
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 905748-1N6290A
Ultra Librarian 3D Model Ultra Librarian 1N6290A CAD Model

Description

The 1N6290A is a robust transient voltage suppressor (TVS) diode designed by ON Semiconductor, a leading manufacturer of semiconductor-based solutions. This component is engineered to protect sensitive electronic equipment from voltage spikes and transient events that can cause irreversible damage to integrated circuits and other critical components.

Key Features

  • High Surge Capability: With its ability to handle high transient power surges, the 1N6290A is an ideal choice for safeguarding your electronic systems.
  • Unidirectional Protection: This device offers unidirectional protection, making it suitable for DC applications where the polarity of the transient is known and consistent.
  • Low Clamping Voltage: The low clamping voltage ensures that the protected components are exposed to minimal stress during transient events.
  • Fast Response Time: The TVS diode's quick response time to transient events helps to prevent the damage before it can affect the circuit.
  • DO-201 Package: Housed in a DO-201 package, the 1N6290A is easy to install and provides a reliable mechanical and thermal operating environment.

Applications

The 1N6290A is versatile and can be used in a variety of applications where transient voltage protection is critical. Common applications include:

  • Industrial systems
  • Consumer electronics
  • Telecommunication devices
  • Power supply units
  • Automotive electronics

Specifications

Parameter Value Peak Pulse Power Dissipation 1500 W Breakdown Voltage Min. 10.8 V, Max. 11.9 V Clamping Voltage 17.1 V Operating Temperature Range -55°C to +175°C

With its combination of high surge capability, fast response time, and robust construction, the 1N6290A from ON Semiconductor is an excellent choice for protecting your electronic investments from the unpredictable nature of transient voltages.
