Same model may have multiple batches, images only for reference.

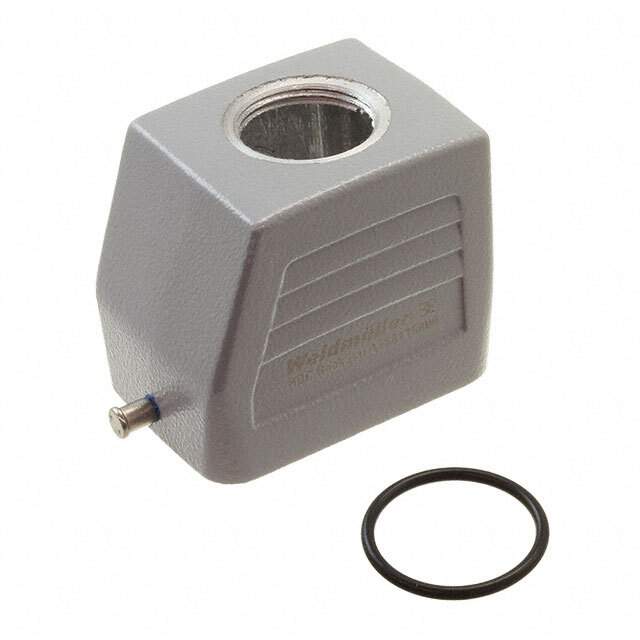

1788110000 Real Image
Same model may have multiple batches, images only for reference.

1788110000

Part No 1788110000
Manufacturer Weidmuller
Catalog Heavy Duty Connectors
Description CONN HOOD TOP ENTRY SZ3 M25 / Hood Connector Top Entry M25 3 IP65 - Dust Tight, Water Resistant
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Housings, Hoods, Bases
Mfr Weidmüller
Series RockStar®
Package Bulk
Connector Type Hood
Style Top Entry
Size 3
Lock Location Locking Clip (1) on Base Bottom
Thread Size M25
Size / Dimension 2.362" L x 1.693" W x 2.047" H (60.00mm x 43.00mm x 52.00mm)
Housing Color Gray
Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Aluminum, Die Cast
Housing Finish Powder Coated
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1340961-1788110000
Ultra Librarian 3D Model Ultra Librarian 1788110000 CAD Model

Description

The 1340961-1788110000 is a hood connector type from Weidmuller.

  • Series: RockStar
  • Package: Bulk
  • Ingress Protection: IP65
  • Housing Material: Aluminum Die-Cast
  • Housing Color: Gray
  • Size/Dimension: 2.362 inches L x 1.693 inches W x 2.047 inches H (60.00mm x 43.00mm x 52.00mm)
  • Style: Top Entry
  • Size: 3
  • Thread Size: M25
  • Operating Temperature: Not specified
  • Housing Finish: Powder-Coated
  • ECCN: EAR99
  • Lock Location: Locking Clip (1) on Base Bottom
