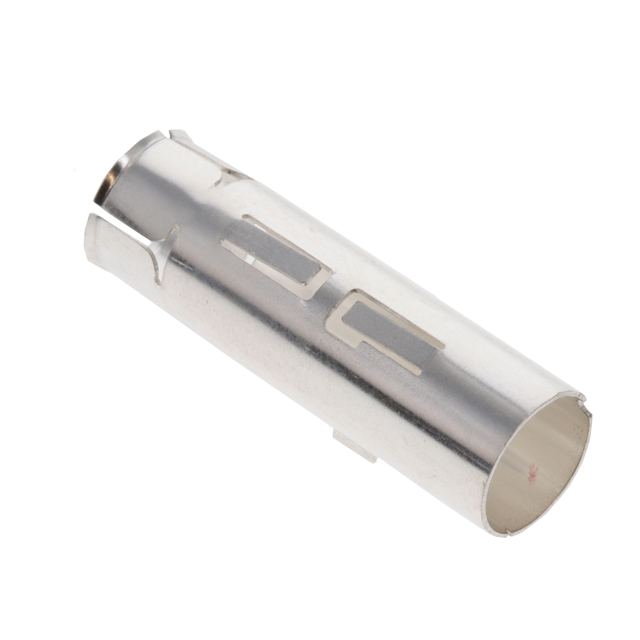

1103426-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors - Inserts, Modules
Mfr TE Connectivity AMP Connectors
Series HC25, CHC, HTS
Package Bulk
Connector Type Insert without Contacts
Gender Male
Number of Positions 4
Termination Style Crimp
Voltage Rating 60V
Contact Type HDP-22
Temperature Range - Operating -20°C ~ 80°C
Housing Material Copper Alloy
Base Product Number 1103426
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 1103426-2-ND,-1103426-2-SI,A127671,2266-1103426-2
Standard Package 40
Win Source Part Number 1026075-1103426-2
Ultra Librarian 3D Model Ultra Librarian 1103426-2 CAD Model

Description

This electronic component is a male heavy-duty connector insert without contacts manufactured by TE Connectivity AMP Connectors.

  • Win Source Part Number: 1026075-1103426-2
  • Series: HC25, CHC, HTS
  • Number of Positions: 4
  • Termination: Crimp
  • Color: Not Specified
  • Contact Type: HDP-22
  • Package: Bulk
  • Voltage Rating: 60V
  • Housing Material: Copper Alloy
  • Flammability Rating: Not Specified
  • Temperature Range: -20°C to 80°C
  • MSL Level: Not Specified
  • Current Rating: Not Specified
  • REACH Status: Vendor Undefined
  • HTSUS Code: 8536.90.4000
