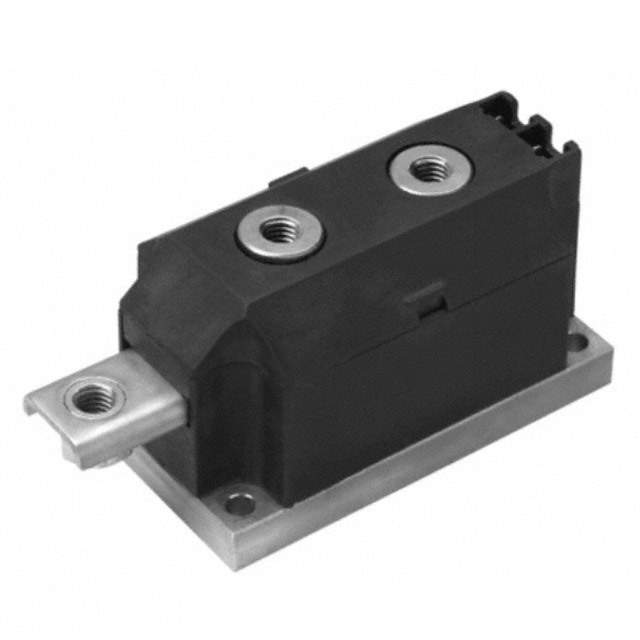

VSKD320-16 Real Image
Same model may have multiple batches, images only for reference.

VSKD320-16

Part No VSKD320-16
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 1.6KV 320A MAGNAPAK / Diode Switching 1.6KV 320A 3-Pin MAGN-A-PAK
Datasheet
VSKD320-16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Part Status Obsolete(EOL)
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 1600V
Current - Average Rectified (Io) (per Diode) 320A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50mA @ 1600V
Mounting Chassis Mount
Package 3-MAGN-A-PAK
Manufacturer Package MAGN-A-PAK
Win Source Part Number 777097-VSKD320-16
Popularity Medium
Supply and Demand Status Limited
Family Name VSKD320-16
Introduction Date November 04, 2008
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian VSKD320-16 CAD Model

Description

The Vishay Semiconductor Diodes Division VSKD320-16 is a 1 pair series connection standard diode in a 3-MAGN-A-PAK package.

  • Current - Average Rectified (Io) (per diode): 320A
  • Voltage - DC Reverse (Vr) (maximum): 1600V
  • Speed: Standard Recovery >500ns, > 200mA (Io)
  • Mounting: Chassis Mount
  • Supply and Demand Status: Limited
