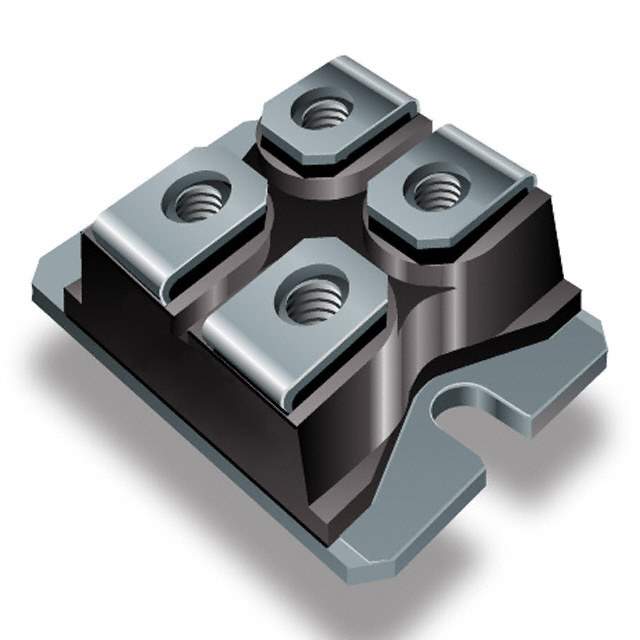

HFA120EA60 Real Image
Same model may have multiple batches, images only for reference.

HFA120EA60

Part No HFA120EA60
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description Ultrafast, Soft Recovery Diode | DIODE MODULE 600V 75A SOT227B
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Configuration 2 Independent
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 600V
Current - Average Rectified (Io) (per Diode) 75A (DC)
Voltage - Forward (Vf) (Maximum) at If 1.7V at 60A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 98ns
Current - Reverse Leakage at Vr 20μA at 600V
Mounting Style Chassis Mount
Manufacturer Package SOT-227-4, miniBLOC
Supplier Device Package SOT-227
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Win Source Part Number 1180114-HFA120EA60
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HFA120EA60 CAD Model

Description

The Vishay Semiconductor Diodes Division HFA120EA60 is a fast recovery diode designed for use in discrete semiconductor products.

  • Maximum Voltage: 600V
  • Current Rating: 75A (DC) per diode
  • Package: SOT-227
  • Mounting: Chassis mounting
  • Manufacturer Homepage: www.irf.com
