Same model may have multiple batches, images only for reference.

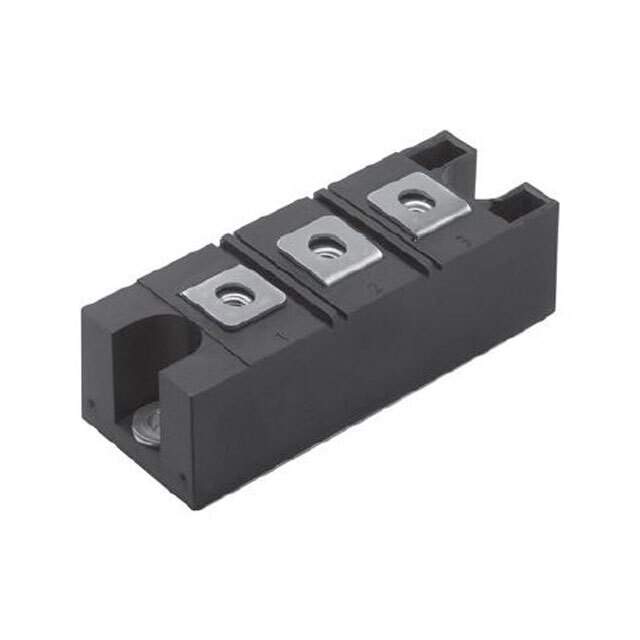

VS-VSKC166/12PBF Real Image
Same model may have multiple batches, images only for reference.

VS-VSKC166/12PBF

Part No VS-VSKC166/12PBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 1.2KV INT-A-PAK
Datasheet
VS-VSKC166/12PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 1200V
Current - Average Rectified (Io) (per Diode) 165A
Speed Standard Recovery >500ns, > 200mA (Io)
Mounting Chassis Mount
Package INT-A-PAK (3)
Manufacturer Package INT-A-PAK
Manufacturer Vishay
Manufacturer Homepage www.vishay.com
Win Source Part Number 735758-VS-VSKC166/12PBF
Popularity Medium
Supply and Demand Status Limited
Family Name VS-VSKC166/12
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian VS-VSKC166/12PBF CAD Model

Description

The Vishay VS-VSKC166/12PBF is a standard diode pair with a current rating of 165A. It has a maximum reverse voltage of 1200V and a standard recovery time of >500ns with a forward voltage of not specified. The diode package is INT-A-PAK (3) and has a common cathode configuration. It is designed for chassis mounting and is ideal for use in discrete semiconductor products. The VS-VSKC166/12PBF is a medium popularity product with a limited supply and demand status. Alternative parts for this product are MSKD200-12, QRC1220T30, MSKD165-12. ECCN for this product is EAR99.
