Same model may have multiple batches, images only for reference.

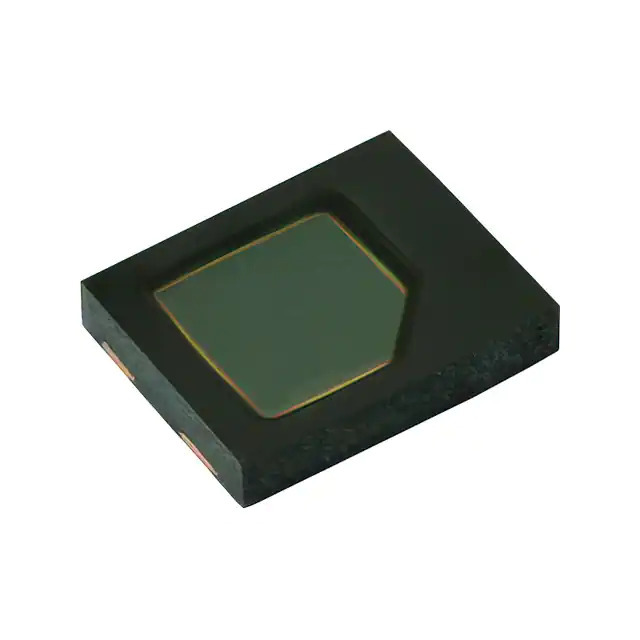

VEMD5060X01 Vishay
Same model may have multiple batches, images only for reference.

VEMD5060X01

Part No VEMD5060X01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE 430 TO 1100 NM
Datasheet
VEMD5060X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photodiodes
Mfr Vishay Semiconductor Opto Division
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Wavelength 820nm
Color - Enhanced -
Spectral Range 350nm ~ 1070nm
Diode Type PIN
Responsivity @ nm -
Response Time 30ns
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Dark (Typ) 200pA
Active Area 7.5mm²
Viewing Angle 130°
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Base Product Number VEMD5060
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 1372041-VEMD5060X01
Ultra Librarian 3D Model Ultra Librarian VEMD5060X01 CAD Model

Description

The VEMD5060X01 is an active photodiode sensor manufactured by Vishay Semiconductor Opto Division.

  • Series: Automotive, AEC-Q101
  • Package / Case: 4-SMD, no lead
  • Temperature Range: -40°C to 110°C
  • Response Time: 30ns
  • Reverse Voltage: 20V
  • Viewing Angle: 130°
  • Spectral Range: 350nm to 1070nm
  • Active Area: 7.5mm²
  • Dark Current: 200pA (typical)
  • Mounting Type: Surface Mount
  • ECCN: EAR99
