Same model may have multiple batches, images only for reference.

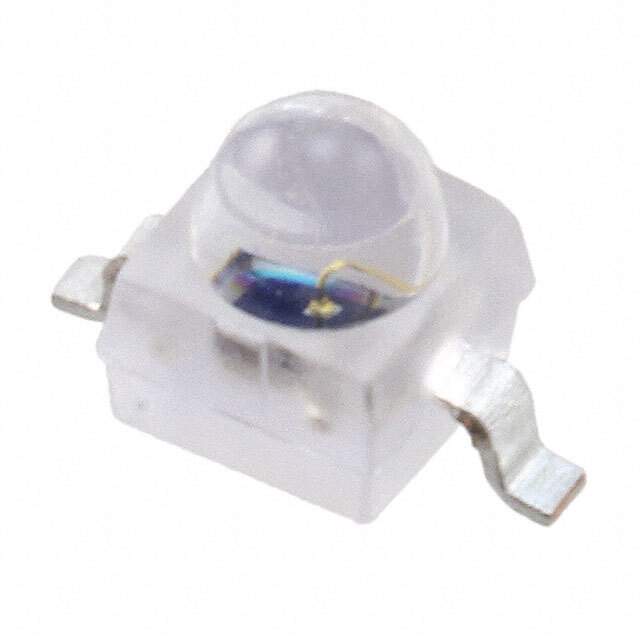

VEMD2520X01 Real Image
Same model may have multiple batches, images only for reference.

VEMD2520X01

Part No VEMD2520X01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE 350 TO 1100 NM / Photodiode 900nm 100ns 70° 2-SMD, Yoke Bend
Datasheet
VEMD2520X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photodiodes
Manufacturer Vishay Semiconductor Opto Division
Packaging Reel - TR
Wavelength 900nm
Spectral Range 350nm ~ 1120nm
Diode Type PIN
Response Time 100ns
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Dark (Typ) 1nA
Active Area 0.23mm²
Viewing Angle 70°
Temperature Range - Operating -40°C ~ 100°C
Mounting Surface Mount
Case / Package 2-SMD, Yoke Bend
Base Product Number VEMD2520
RoHS Status ROHS3 Compliant
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.49.1050
Other Part Number VEMD2520X01DKR,VEMD2520X01TR,VEMD2520X01-ND,VEMD2520X01CT
Standard Package 6,000
Win Source Part Number 1336665-VEMD2520X01
Ultra Librarian 3D Model Ultra Librarian VEMD2520X01 CAD Model

Description

The Vishay Semiconductor Opto Division VEMD2520X01 is a PIN diode that is used in optical sensors to detect high-speed changes in light intensity.

  • Applications: Optical Sensors
  • Response Time: 100ns
  • Mounting Type: Surface Mount
  • Package: 2-SMD Yoke Bend
  • Maximum DC Reverse Voltage: 60V
  • Spectral Range: 350nm to 1120nm
  • Active Area: 0.23mm²
  • Operating Temperature: -40°C to 100°C
  • ROHS3 Compliant: Yes
