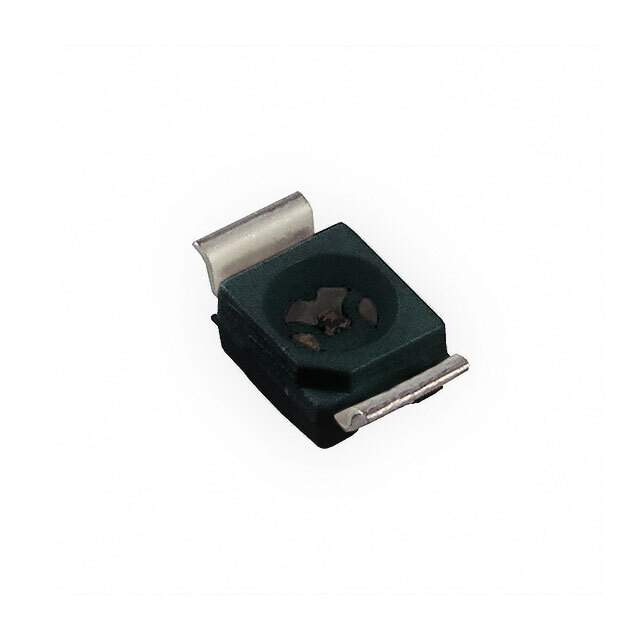

SFH 2270R Real Image
Same model may have multiple batches, images only for reference.

SFH 2270R

Part No SFH 2270R
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Photodiodes
Description SENSOR PHOTODIODE 560NM 2SMD
Datasheet
SFH 2270R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors
Estimated Pruduction Lead Time 13 Weeks
Features Photodiode 560nm 6µs 120° 2-SMD, Z-Bend
Manufacturer OSRAM Opto Semiconductors Inc.
Package Reel - TR
Operating Temperature Range -40°C ~ 100°C
Mounting Surface Mount
Package 2-SMD, Z-Bend
Family Name SFH 2270
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.6050
Other Part Number 475-3138-6, SFH 2270 R-ND, 475-3138-2, 475-3138-1, Q65110A9911, SFH 2270 R
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 894188-SFH 2270R
Ultra Librarian 3D Model Ultra Librarian SFH 2270R CAD Model

Description

The 894188-SFH 2270R is a high-quality electronic component from OSRAM Opto Semiconductors Inc.

  • Supply and Demand Status: Balanced
  • Popularity: High
  • Product Type: Sensor
  • Operating Temperature: -40°C ~ 100°C
  • Features: Photodiode 560nm 6µs 120° 2-SMD, Z-Bend
  • Package: Reel - TR
  • Mounting Type: Surface Mount
