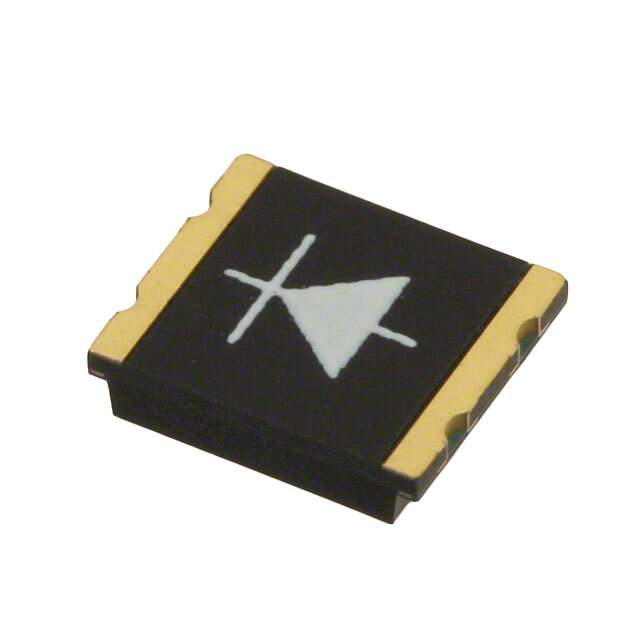

TEMD5120X01 Real Image
Same model may have multiple batches, images only for reference.

TEMD5120X01

Part No TEMD5120X01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE 790 TO 1050 NM
Datasheet
TEMD5120X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors
Estimated Pruduction Lead Time 8 Weeks
Features Photodiode 940nm 100ns 130° 4-SMD, No Lead
Manufacturer Vishay
Package Reel - TR
Operating Temperature Range -40°C ~ 100°C
Mounting Surface Mount
Package 4-SMD, No Lead
Family Name TEMD5120
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.6050
Other Part Number 751-1049-1-ND, TEMD5120X01CT, 751-1049-6-ND, 751-1049-2-ND, 751-1049-6, TEMD5120X01DKR, TEMD5120X01TR, 751-1049-1, 751-1049-2
Quantity per package 1500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 899484-TEMD5120X01
Ultra Librarian 3D Model Ultra Librarian TEMD5120X01 CAD Model

Description

The Vishay TEMD5120X01 is a photodiode that is designed for use in a wide range of applications.

  • Operating Temperature Range: The device has an operating temperature range of -40°C to 100°C
  • Package: and is available in a 4-SMD, No Lead package.
  • Mounting: The device is surface mountable
  • Wavelength: and has a wavelength of 940nm.
  • Use: The device is ideal for use in applications where high performance and reliability are required.
