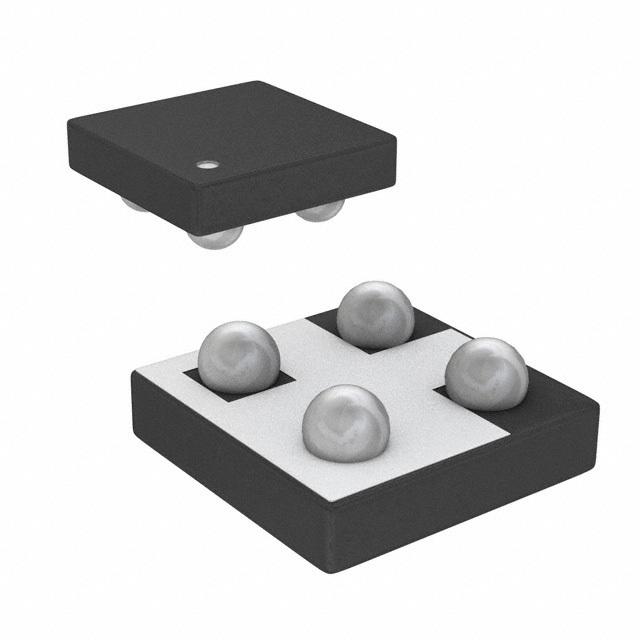

SI8415DB-T1-E1 Vishay
Same model may have multiple batches, images only for reference.

SI8415DB-T1-E1

Part No SI8415DB-T1-E1
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 12V 5.3A 2X2 4-MFP
Datasheet
SI8415DB-T1-E1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 12V
Continuous Drain Current at 25°C 5.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 30nC @ 4.5V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 1.47W (Ta)
Maximum Rds On at Id,Vgs 37 mOhm @ 1A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 4-Microfoot
Dimension 4-XFBGA, CSPBGA
Win Source Part Number 103036-SI8415DB-T1-E1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SI8415DB-T1-E1 CAD Model

Description

The electronic component with Id 330174 is a MOSFET from Vishay manufacturer.

  • Mounting: SMD (SMT)
  • Polarity: P-Channel
  • Power Dissipation (Max): 1.47W (Ta)
  • Continuous Drain Current @ 25°C: 5.3A (Ta)
  • Supply and Demand Status: balanced
