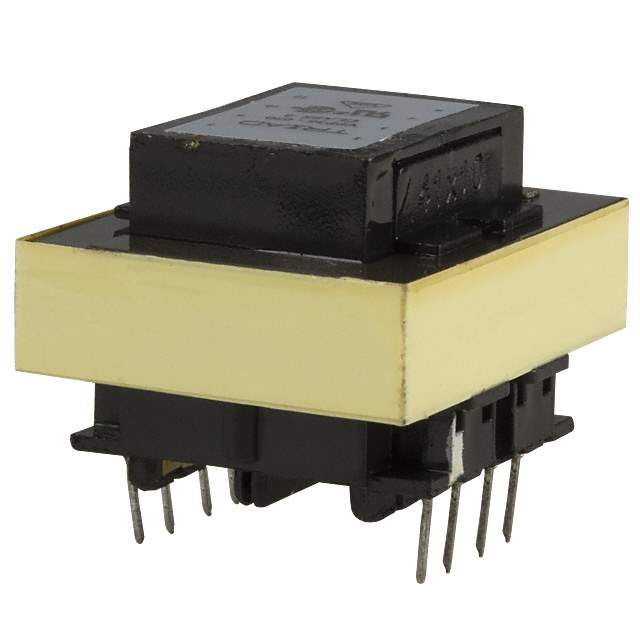

VPP12-200 Real Image
Same model may have multiple batches, images only for reference.

VPP12-200

Part No VPP12-200
Manufacturer Triad Magnetics
Catalog Power Transformers
Description PWR XFMR LAMINATED 2.5VA TH /
Datasheet
VPP12-200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Triad Magnetics
Package Box
Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 6.3V, Series 12.6V
Current - Output (Max) Parallel 400mA, Series 200mA
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 2.5VA
Mounting Type Through Hole
Termination Style PC Pin
Dimension 41.28mm L x 33.32mm W
Height - Seated (Max) 28.58mm
Voltage - Isolation 4000Vrms
Weight 0.25 lb (113.4 g)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Names 237-1061-NDR,237-1061,10474,VPP12200
Standard Package 1
Win Source Part Number 1191627-VPP12-200
Ultra Librarian 3D Model Ultra Librarian VPP12-200 CAD Model

Description

The VPP12-200 is a laminated core power transformer manufactured by Triad Magnetics.

  • Maximum Power: 2.5VA
  • Weight: 0.25lb
  • Voltage Isolation: 4000Vrms
  • Primary Windings: 115V or 230V
  • Secondary Winding Options: 6.3V in parallel or 12.6V in series
  • Mounting Type: Through-hole
  • Dimension: 41.28mm L x 33.32mm W
