Same model may have multiple batches, images only for reference.

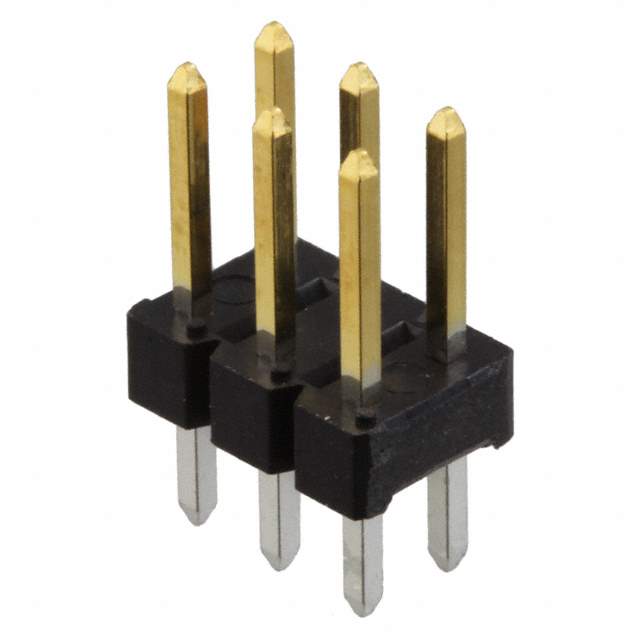

67997-206HLF Real Image
Same model may have multiple batches, images only for reference.

67997-206HLF

Part No 67997-206HLF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 2.54MM / Connector Header Through Hole 6 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Amphenol ICC (FCI)
Packaging Bag
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.120" (3.05mm)
Overall Contact Length 0.450" (11.43mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold, GXT™
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Material Phosphor Bronze
Temperature Range - Operating -65°C ~ 130°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number 67997
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 67997206HLF,609-3234
Standard Package 400
Win Source Part Number 1332328-67997-206HLF
Ultra Librarian 3D Model Ultra Librarian 67997-206HLF CAD Model

Description

The Amphenol ICC (FCI) 1332328-67997-206HLF is a 6-position male pin header connector designed for board-to-board applications.

  • Positions: 6
  • Pitch: 0.100" (2.54mm)
  • Style: Unshrouded
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold or Gold, GXT™
  • Current Rating: 3A
  • Temperature Range: -65°C to 130°C
  • RoHS Compliant: Yes
  • Standard Package: 400 Units
  • Mounting Type: Through-Hole
  • Termination: Solder
