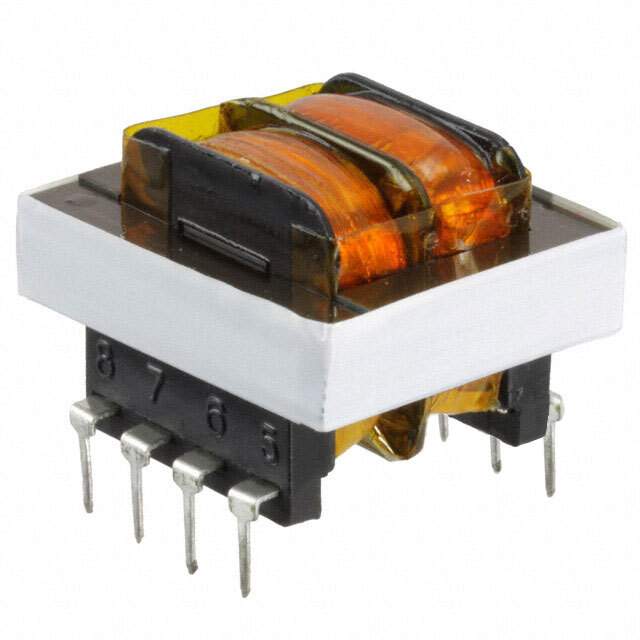

FS48-023-C2 Real Image
Same model may have multiple batches, images only for reference.

FS48-023-C2

Part No FS48-023-C2
Manufacturer Triad Magnetics
Catalog Power Transformers
Description PWR XFMR LAMINATED 1.1VA TH
Datasheet
FS48-023-C2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Manufacturer Triad Magnetics
Packaging Tube
Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 24V, Series 48V
Current - Output (Max) Parallel 46mA, Series 23mA
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 1.1VA
Mounting Through Hole
Termination Style PC Pin
Size / Dimension 34.93mm L x 28.58mm W
Height - Seated (Max) 23.80mm
Voltage - Isolation 4200Vrms
Weight 0.17 lb (77.11 g)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Part Number 237-1571,FS48-023-C2-B
Standard Package 10
Win Source Part Number 1335158-FS48-023-C2
Ultra Librarian 3D Model Ultra Librarian FS48-023-C2 CAD Model

Description

The Triad Magnetics 1335158-FS48-023-C2 is a laminated core power transformer with a PC pin termination style.

  • Power (Max): 1.1VA
  • Weight: 0.17 lb (77.11 g)
  • Voltage Isolation: 4200Vrms
  • Voltage Primary: 115V or 230V
  • Current Output: 46mA in parallel and 23mA in series
  • Voltage Secondary (Full Load): 24V in parallel and 48V in series
  • Primary and Secondary Windings: Dual
  • Center Tap: No
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Dimensions: 34.93mm L x 28.58mm W, Seated Height: 23.80mm
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
